699764-001 Technical Specifications

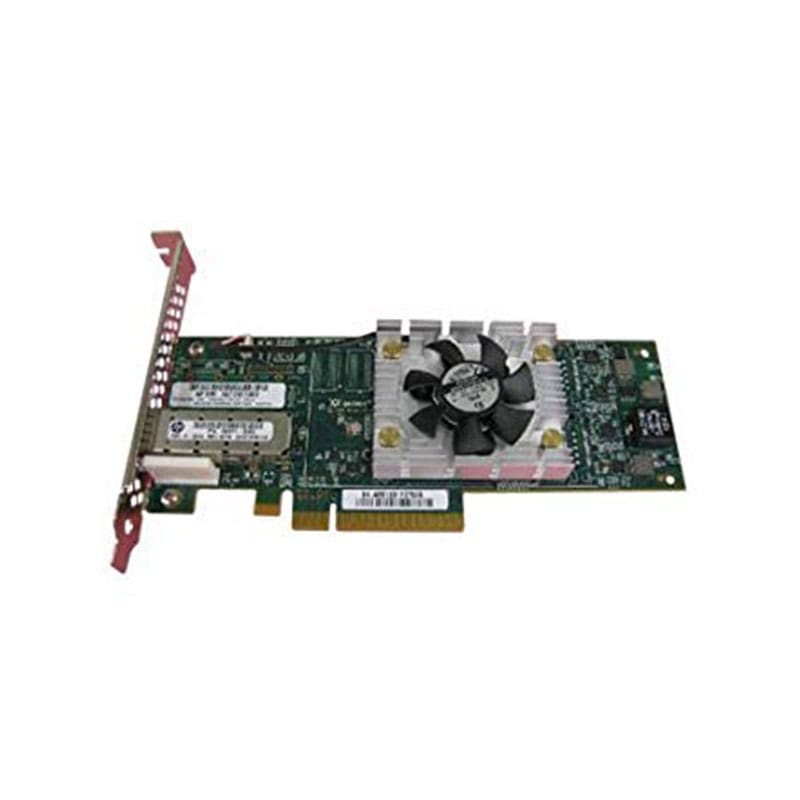

HP Storefabric Sn1000q 16GB Single Port PCI-E
Manufacturer Name: HP
Type: Controller
Product Type: Host Bus Adapter
Technical Information
Form Factor: Plug-in Card – Low Profile
Interface (Bus) Type: PCI Express 3.0 x4
Networking
Ports: 16Gb Fibre Channel x 1
Port Speed: 16 GBPS
Slot Type Supported: PCI Express 3.0 to Fibre Channel
Media: Multi-Mode Optic (SFP+)
Connector: Short Wave laser with Lucent Connector (LC)
PCIe Connector: PCIe 3.0 x4
Auto-Negotiation: 16/8/4 GBPS
Connectivity Technology: Wired
Cabling Type: Fiber Optic
Data Link Protocol: 16Gb Fibre Channel (Short Wave)
Data Transfer Rate: 16 Gb/sec
Features: Auto-Negotiation
Expansion / Connectivity
Compatible Slots: 1 x PCI Express 3.0 x4
Expansion Slots: 2 (total) / 0 (free) x SFP+
Interfaces: 1 x 16Gb Fibre Channel (Short Wave) – LC multi-mode – x 2
