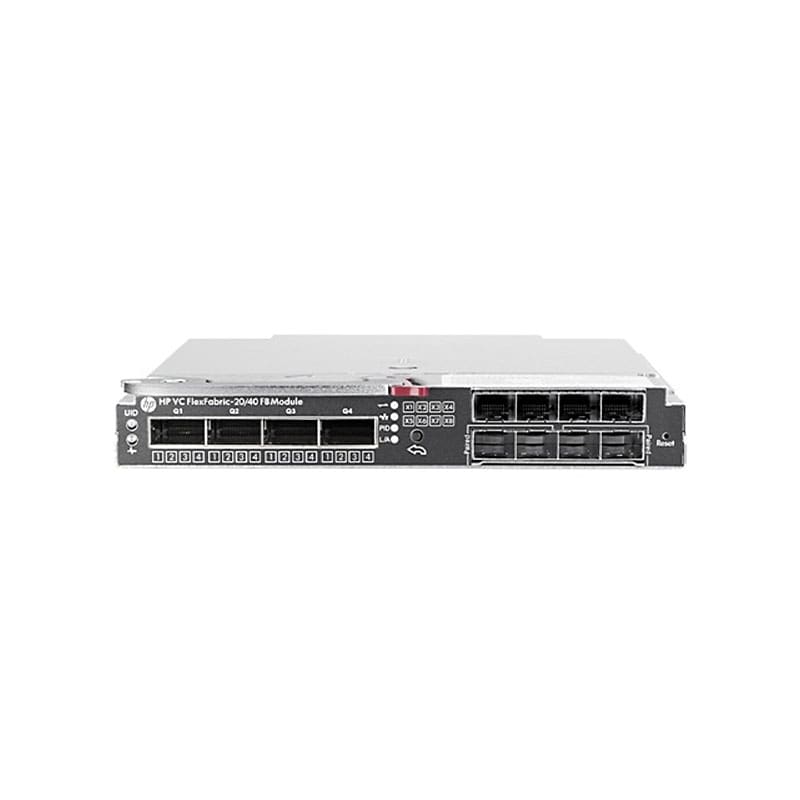

699350-001 Technical Specification
HPE 40GB Ethernet 28 Port Virtual Connect
Manufacturer: HPE
Brand: HPE
Type: Networking
Module Type: Expansion Module 16 Ports
Technical Information
Enclosure Type: Plug-In Module
Ports: 16 X 10/20GBEthernet (Midplane Downlink) + 2 X 20GB Ethernet (Cross Connect Link) + 4 X 40 Gigabit Qsfp+
Performance: Fabric Throughput : 1.2 TBPS
Capacity: Network Access Groups : 128
Jumbo Frame Support: 9216 Bytes
Fibre Channel: Fc-Fg, Fc-Fla, Fc-Gs, Fc-Gs-2, Fc-Gs-3
Routing Protocol: Igmpv2, Igmp, Igmpv3
Remote Management Protocol: Snmp 1, Snmp 2, Https, Smi-S, Cli
Encryption Algorithm: Ssl
Authentication Method: Radius, Tacacs+, Ldap
Status Indicators: Port Status, Link Activity, Status Of Modules, Module Locat
Expansion / Connectivity
Interfaces: 16 X 10/20gbit Lan – Midplane Downlink 2 X 20gbit Lan – Cross Connect Link 4 X 40gbit Lan – Qsfp+ – Uplink 8 X 10gbit Lan – Sfp+ – Uplink
