698533-B21 Technical Specifctaions

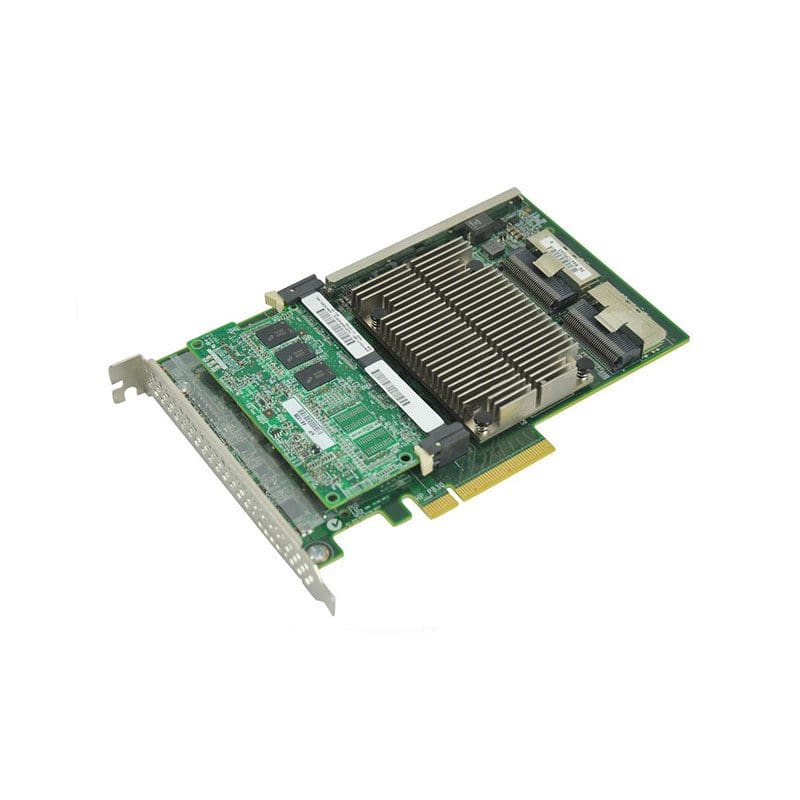

HP Smart Array P830 4GB Cache 2-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 RAID 0/1/5/6/10/50/60/1ADM/10ADM Controller Card FBWC Kit
Manufacturer Part Number 698533-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 6Gb/s SAS
RAID Supported Yes
RAID Levels 6
60
5
50
1
10
1 ADM
0
Data Backup Type Flash Backed Cache
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
Physical Characteristics
Height 4.4″
Width 6.6″
Thickness 0.7″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification WEEE
