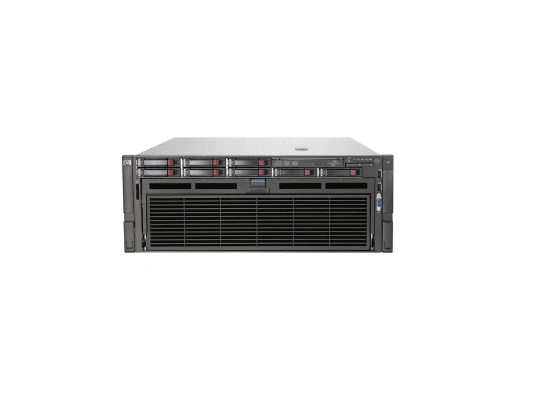

Refurbished 696730-001 Technical Specifications
HP Proliant Dl580 G7 High Performance 4x Intel Xeon 10 Core E7 4850 2.0GHz 128gb Ddr3 Sdram Dvd Rom P410i With 1gb Fbwc Sas Sata 331i Integrated Adapter Ilo 3 4x 1200w Ps 4u Rack Server.
GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 696730-001
Product Name: Proliant Dl580 Gen7 4u Rack Mount High Performance Model
PROCESSOR & CHIPSET :
Processor Type: Intel Xeon E7-4850 / 2.0ghz
Multi-Core Technology: 10 Core
64-Bit Computing: Yes
Installed Qty: 4
Max Supported Qty: 4
Chipset Type: Intel 7500
CACHE MEMORY :
Cache Memory Type: L3 Cache
Installed Size: 120 Mb
Cache Per Processor: 30 Mb
MEMORY :
Installed Ram Size: 128 Gb
Maximum Ram Size : 2 Tb
Technology: Ddr3 Sdram – Advanced Ecc
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered, Memory Mirroring, Online Spare Memory
Configuration Features: 16 X 8 Gb
STORAGE :
Hard Drives : None Ship Standard
Internal Storage : Up To 8.0tb Of Internal Storage (Sff Sas)
Optical Drive : Hp Slim Sata Dvd Rom Optical Drive
STORAGE CONTROLLERS :
Storage Controller Type: 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type: Serial Ata-300 / Sas 2.0
Storage Controller Name: Embedded Hp Smart Array P410i/1g Fbwc Controller
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Buffer Size: 1 Gb
DISPLAY & GRAPHICS :
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 64 Mb
NETWORK & COMMUNICATION :
Networking: Network Adapter – Pci Express 2.0 X8 – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc375i Integrated Quad Port Gigabit Server Adapter
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
