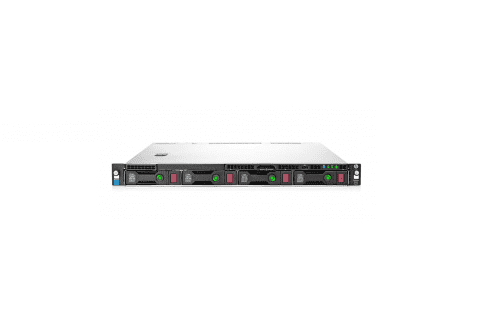

Refurbished 687519-S01 Technical Specifications
HP Rack-mountable 1U Intel CPU Quad core 3.4 GHz.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 687519-S01
Product Name : Proliant Dl320e Gen8 1u Rack Mount S-Buy
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E3-1240v2 / 3.40GHz
Number Of Cores : Quad-Core (4 core)
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 1
Upgradability : Upgradable
Chipset Type : Intel C204
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 8 Mb
Cache Per Processor : 8 M
MEMORY :
Installed Size : 8 Gb
Maximum Size : 32 Gb
Technology : Ddr3 Sdram
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3-12800e
Form Factor : Dimm 240-Pin
Features : Registered, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features : 2 X 4 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None Ship Standard
Internal Storage : 4 Lff Hdd 4 Bays, Includes 4 Lff Hard Drive Blanks
Optical Drive : None Ships Standard
Storage Controller : Hp Dynamic Smart Array B120i Controller
DISPLAY & GRAPHICS CONTROLLERS :
Integrated Matrox G200 Video Standard
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
Hp Ilo 4 On System Management Memory
16 Mb Flash
256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)
NETWORK & COMMUNICATION :
Network Controller : Hp Ethernet 1gb 2-Port 330i Adapter
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp 330i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out -4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DEVICE :
Power Supply : 1x 350 Watts Non-Hot Plug, Non Redundant
Voltage Required : Ac 120/230 V ( 50/60 Hz )
