677198-001 Technical Specifications

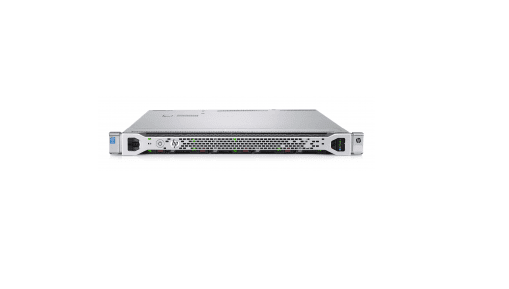

HP Proliant Dl360p G81u Rack Server 2 X Intel Xeon E5-2603 1.8ghz.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 677198-001
Product Name: Proliant Ml360p Gen8- 2-Way 1u Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2603 / 1.80 Ghz
Multi-Core Technology: Quad-Core (4 Core)
64 Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Model: Intel C600
CACHE MEMORY:
Installed Size : L3 Cache 20 Mb
Cache Per Processor : 10 Mb
MEMORY:
Installed Ram Size: 8 Gb / 384 Gb (Max)
Technology: Ddr3 Sdram
Form Factor: Dimm 240-Pin
Number Of Total Memory Slots: 24 Ddr3 Slots
Configuration Features: 2 X 4 Gb
RAM SUPPORTED:
Pc3-12800 – 384 Gb – Registered
Pc3-10600 – 768 Gb
Pc3-10600 – 128 Gb – Unbuffered – Advanced Ecc
STORAGE CONTROLLERS:
Hard Drive: None
Optical Drive Type: None
Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Storage Controller: Smart Array P420i
Raid Supported: Yes
Raid Levels: Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS:
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Video Interfaces : Vga
NETWORK & COMMUNICATION:
Type : Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad
