674326-001 Technical Specifications

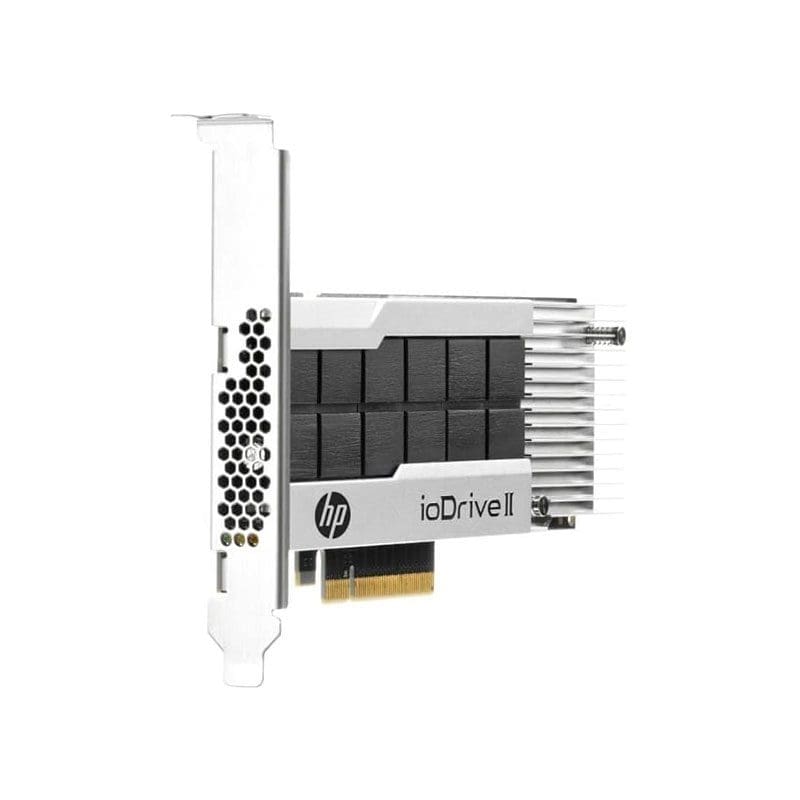

HP 785GB Multilevel Cell Mlc G2 Pcie Io Drive For Proliant Servers
GENERAL INFORMATION :
Manufacturer : hewlett-packard
Manufacturer part number: 674326-001
Product name : hp 785GB multi level cell g2 pcie io accelerator
Nand Flash Memory Type: Multi-Level Cell (MLC)
TECHNICAL INFORMATION :
Usable capacity: 785gb
Technology : nand flash, mlc
Solid State Drive (SSD)
Bandwidth (1mb): 1.1gb/s writes, 1.5gb/s reads
Access latency : 17 microseconds for writes, 68 microseconds for reads
Iops
Read 443,000 iops (sequential 512b), write 535,000 iops (sequential 512b)
Read 141,000 iops (random 512b), write 535,000 iops (random 512b)
Form factor: half height/half length-low profile pci express x 4 slot (spec 2.0)
Bus interface: pci express x 4
Power (nominal): pci express x 4 (power spec 2.0)
Operating temperature: 0-55°c (operational)/-40-70°c (non-operational)
Supported driver version: 3.x and higher
