669803-B21 Technical Specifications

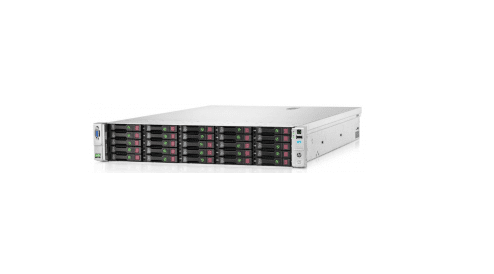

HP Proliant Dl385p G8 Cto Chassis With No CPU, No Ram, 25sff Sas/Sata Hdd Bays, Smart Array P420i Controller With Zero Memory, 1x Flexible Lom Connector, Ilo-4, 2u Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 669803-B21
Product Name : Proliant Dl385p Gen8 2u Rack Mount Cto Chassis
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron
Cpu Socket Type : Socket G34
64-Bit Computing : Yes
Installed Qty : None
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Amd Sr5690/Sp5100
Cache Memory Type : L3 Cache
MEMORY :
Installed Size : 0 Gb
Maximum Size : 768 Gb
Technology : Ddr3 Sdram
Form Factor : Dimm 240-Pin
STORAGE & STORAGE CONTROLLER :
Hard Drive : None Ship Standard
Internal Storage : 25 Sff Sas/Sata Hdd 25 Bays
Optical Drive Bay : None Available
Storage Controller Type : 1 X Serial Attached Scsi 2-Integrated- Pci Express X4
Controller Interface Type : Sata-300 / Sas 2.0
Storage Controller Name : Smart Array P420i Controller W/ Zero Memory (Zm)
DISPLAY & GRAPHICS CONTROLLERS :
Integrated Matrox G200 Video Standard
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
Hp Ilo 4 On System Management Memory
16 Mb Flash
256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)
NETWORK & COMMUNICATION :
Interface (Bus) Type : Pi Express 2.0 X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Flexiblelom Connector
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 0
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 750 Watt
80 Plus Certification : 80 Plus Platinum
