Refurbished 668669-001 Technical Specifications

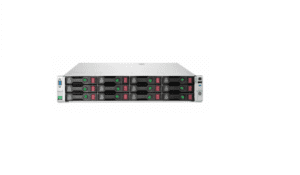

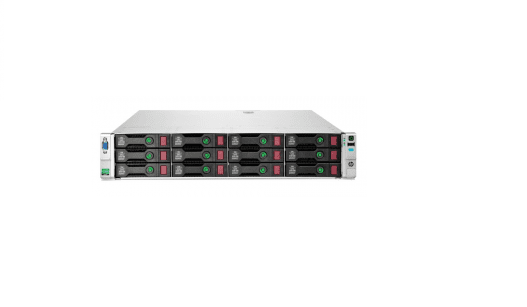

HP Proliant Dl380e G8 High Performance Server 2x Intel Xeon 8 Core E5 2450/2.10GHz RAM 24GB Matrox G200 4x Gigabit Ethernet 2x Power Supply 2u Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 668669-001
Product Name : Proliant Dl380e Gen8 2u Rack Mount High Performance Model
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2450/2.10ghz
Number Of Cores : Octa-Core (8 Core)
Sockets Supported : Lga1356
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Processor Main Features :
Hyper-Threading Technology,
Intel Quickpath Interconnect,
Intel Turbo Boost Technology 2
Chipset Type : Intel C600
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 40 Mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 24 Gb
Maximum Size : 384 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Load-Reduced Dimm (Lrdimm)
Configuration Features : 6 X 4 Gb
Total Memory Slots : 12
STORAGE & STORAGE CONTROLLER :
Hard Drive : None Ship Standard
Internal Storage : 8 Sff Hdd 8 Bays
Optical Drive : None Ship Standard,(Optional: Dvd-Rom, Dvd-Rw)
Storage Controller Type : 1 X SAS Serial Attached Scsi 2 Integrated – Pci Express X4
Controller Interface Type : Serial Attached Scsi 2.0
Storage Controller Name : Hp Smart Array P420/1gb Fbwc Controller
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 1 Gb
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Graphics Regulation :
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci Express 2.0 X2 – Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(S) : Hp Ethernet 1gb 4-Port 366i Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt
