Refurbished 666158-B21 Technical Specifications

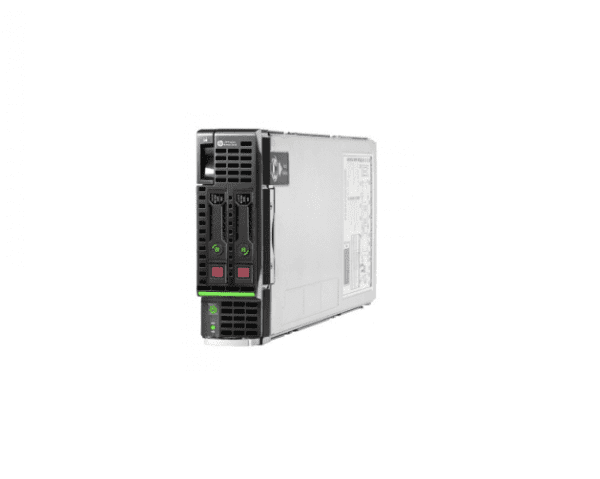

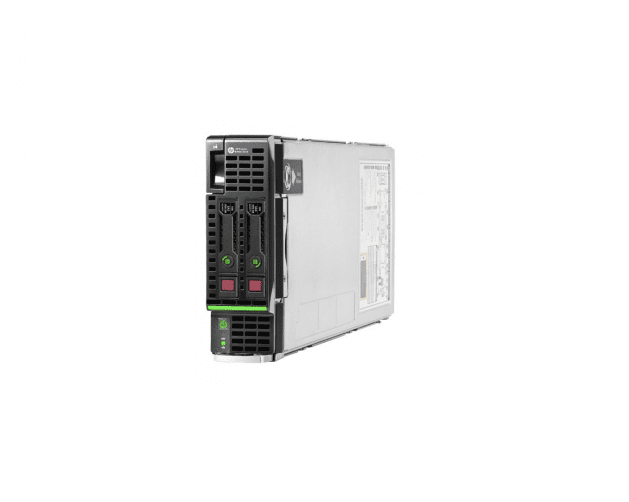

HP Proliant Bl460c G8 2x Intel Xeon 8 Core E5 2660 2.2GHz RAM 64GB Matrox G200 2×10 Gigabit Ethernet 2 Way Blade Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 666158-B21
Product Name : Proliant Bl460c G8 2-Way Blade Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2660 / 2.2 Ghz
Number Of Cores : 8 Core
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 40 Mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 64 Gb
Maximum Size : 512 Gb
Technology : Ddr3 Sdram
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3-12800
Form Factor : Dimm 240-Pin
FEATURES :
Registered,
Quad Channel Memory Architecture,
Hp Smart Memory
Configuration Features : 8 X 8 Gb
RAM SUPPORTED :
Pc3-12800 – 512 Gb – Registered
Pc3-10600 – 128 Gb – Unbuffered – Advanced Ecc
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Optical Drive : None
Internal Storage : Sas: 2.0tb, Sata: 2.0tb, Sas Ssd: 1.6tb
Storage Controller Type : 1 X Serial Attached Scsi 2 Integrated – Pci Express X4
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P220i With 512mb Fbwc
Raid Level : Raid 0, Raid 1
Buffer Size : 512 Mb
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Graphics Regulation :
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci Express 2.0 X8 – Integrated
Ethernet Ports : 2 X 10 Gigabit Ethernet
Data Link Protocol : Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol)
