Refurbished 661189-B21 Technical Specifications

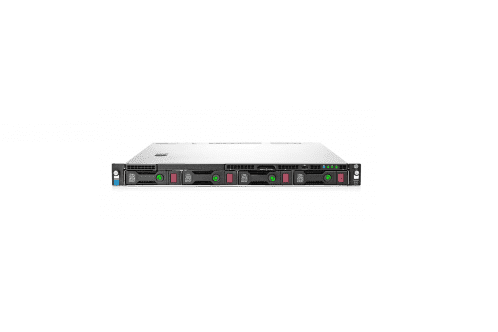

HP Proliant Dl360e G8 CTO Chassis With No CPU No RAM Matrox G200 4x Gigabit Ethernet 1u Rack Server.
General information :
Manufacturer : hewlett packard
Manufacturer part number : 661189-b21
Product name : proliant dl360e g8 1u rack Mount cto
Processor & chipset :
Processor type : intel xeon
Sockets supported : lga1356
64-bit computing : yes
Installed qty : none
Max supported qty : 2
Cpu upgradability : upgradable
Processor main features :
Hyper-threading technology,
Intel quick path interconnect,
Intel turbo boost technology 2
Chipset type : intel c600
Cache memory : l3 cache
Memory :
Installed size : none
Maximum size : 192 gb
Technology : ddr3 sdram
Memory speed : 1333 mhz
Memory specification compliance : pc3-10600
Form factor : lrdimm 240-pin
Features : load-reduced dimm (lrdimm)
Storage & storage controller :
Storage hard drive : none ship standard, includes 8 sff hard drive blanks
Storage controller type : 1 x raid – integrated – pci express 2.0 x4
Controller interface type : sata-600 / sas 2.0
Storage controller name : hp dynamic smart array b120i controller (cache connection for 512mb fbwc options)
Channel qty : 8
Display & graphics controllers :
Graphics controller type : integrated
Graphics processor : matrox g200
Graphics regulation :
1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)
Network & communication :
Networking type : integrated
Interface (bus) type : pci express 2.0 x4
Ethernet ports : 4 x gigabit ethernet
Ethernet controller : hp ethernet 1gb 4-port 366i adapter
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Remote management protocol : snmp, ipmi 2.0, smash clp
Remote management controller : integrated lights-out 4
Features : wake on lan (wol), pxe support
Expansions & connectivity :
Expansion bays total (free) :
1 (total) / 1 (free) x external
8 (total) / 8 (free) x hot-swap – 2.5in sff
Expansion slots total (free) :
12 (total) / 12 (free) x memory – lrdimm 240-pin
2 (total) / 2 (free) x cpu
1 (total) / 1 (free) x pcie 3.0 x16 – half-length, full-height
1 (total) / 1 (free) x pcie 2.0 x8 – low-profile ( x4 mode )
1 (total) / 1 (free) x sd card
Interfaces & ports :
2 x display / video ( 1 front, 1 rear )
4 x lan (gigabit ethernet)
6 x usb 2.0 ( 2 front, 4 rear )
1 x hp ilo
1 x serial
Power device :
Device type : power supply – hot plug
Power redundancy : yes
Power redundancy scheme : 1+1
Installed qty : 0
Max supported qty : 2
Voltage required : ac 120/230 v ( 50/60 hz )
