Refurbished 652065-B21 Technical Specifications

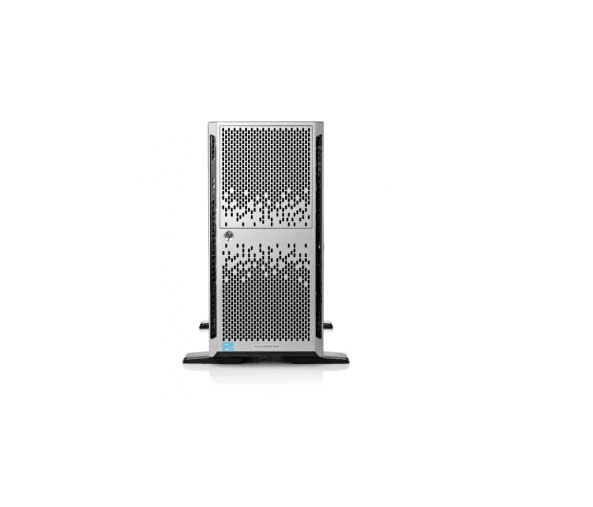

HP Proliant Ml350p G8 CTO With No CPU No RAM No HDD Matrox G200 4x Gigabit Ethernet 5U Tower Server.
General Information :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 652065-B21
Product Name : Proliant Ml350p G8 Sff Cto 5u Tower Server
Processor & Chipset :
Processor Type : Intel E5-2600 Processor Family
Installed Qty : No Cpu
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
Memory :
Installed Size : None
Maximum Size : 768 Gb (24 X 32gb Lrdimm @1066mhz)
Technology : Ddr3 Sdram
Form Factor : Dimm 240-Pin
Memory Slots : 24 Ddr3 Slots
Features : Quad Channel Memory Architecture, Hp Smartmemory
Storage & Storage Controller :
Hard Drive : None, Eight Hot-Plug (Sff) Sas/Sata Drive Bays
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P420i
Raid Level : Raid 0, Raid 1, Raid 10
Card Reader :
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
Display & Graphics Controllers :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Network & Communication :
Networking : Network Adapter – Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(S) : 1gb Ethernet 4-Port 331i Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansions & Connectivity :
Expansion Bays Total (Free) :
3 (Total) / 3 (Free) X Front Accessible – 5.25in Slim Line
8 (Total) / 8 (Free) X Hot-Swap – 2.5in Sff
Expansion Slots Total (Free) :
2 (Total) / 2 (Free) X Processor
24 (Total) / 24 (Free) X Memory – Dimm 240-Pin
1 (Total) / 1 (Free) X Pci Express 3.0 X16 – Full-Length, Full-Height
4 (Total) / 4 (Free) X Pci Express 3.0 X8 – Half-Length, Full-Height
1 (Total) / 1 (Free) X Pci Express 2.0 X8 – Half-Length, Full-Height(X4 Mode)
3 (Total) / 3 (Free) X Pci Express 3.0 X16 – Full-Length, Full-Height
Interfaces & Ports :
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15) ( 1 Front, 1 Rear )
1 X Management – Hp Ilo – Rj-45
10 X Hi-Speed Usb – 4 Pin Usb Type A
4 X Network – Ethernet 10base-T/100base-Tx/1000base-Tx – Rj-45
Power Device :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 0
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
