646902-001 Technical Specifications

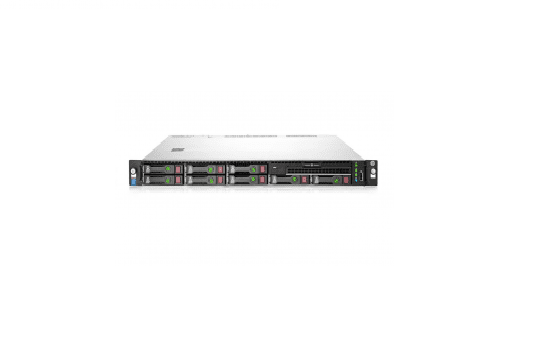

HP ProLiant DL360p G8 646902 001 1U Rack Server 1 x Xeon E5 2640 2.5GHz 2 Processor Support 16 GB Standard Serial Attached SCSI SAS RAID Supported Controller Gigabit Ethernet.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 646902-001
Product Name: Proliant Dl360p G8 – 2-Way 1u Rack Mount (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2640 / 2.50 Ghz
Multi-Core Technology: Hexa-Core (6 Core)
64 Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Model: Intel C600
CACHE MEMORY:
Cache Memory Type : L3 Cache
Installed Size : 15 Mb
Cache Per Processor : 15 Mb
MEMORY:
Installed Ram Size: 16 Gb / 384 Gb (Max)
Technology: Ddr3 Sdram
Form Factor: Dimm 240-Pin
Configuration Features: 4 X 4 Gb
RAM SUPPORTED :
Pc3-12800 – 384 Gb – Registered
Pc3-10600 – 768 Gb – Load-Reduced
Pc3-12800 – 128 Gb – Unbuffered – Advanced Ecc
Pc3-10600 – 384 Gb – Hypercloud
STORAGE & STORAGE CONTROLLERS:
Hard Drive: None
Optical Storage Type: None
Storage Controller Type: 1 X Raid – Integrated – Pci Express 3.0 X8
Controller Interface Type : Sata-600 / Sas 2.0
Storage Controller Name : Smart Array P420i With 1gb Fbwc
Raid Levels: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 1 Gb
DISPLAY & GRAPHICS:
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
NETWORK & COMMUNICATION:
Networking Type : Pci Express X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
