646901-001 Technical Specifications

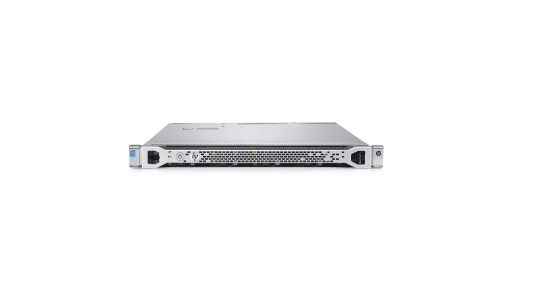

HP Proliant Dl360p G8 1u Rack Server 1 X Intel Xeon E5-2630 2.3GHz.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 646901-001
Product Name: Proliant Ml360p G8 – 2-Way 1u Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2630/ 2.30 Ghz
Multi-Core Technology: Hexa-Core (6 Core)
64 Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Model: Intel C600
CACHE MEMORY:
Type: L3 Cache
Installed Size: 15 MB
Cache Per Processor: 15 MB
MEMORY:
Installed Ram Size: 16 GB / 768 GB (MAX)
Technology: DDR3 SDRAM
Memory Speed: 1333 MHZ
Memory Specifications Compliance: Pc3-10600
Form Factor: DIMM 240-PIN
Features: Registered, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features: 4 X 4 GB
RAM Supported :
PC3-12800 – 384 GB – Registered
PC3-10600 – 768 GB – Load-Reduced
PC3-10600 – 128 GB – Unbuffered – Advanced ECC
PC3-10600 – 384 GB – Hypercloud
STORAGE & STORAGE CONTROLLERS:
Hard Drive: None
Optical Storage Type: None
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
Storage Controller Type: 1 X Raid – Integrated – Pci Express 3.0 X8
Controller Interface Type: Serial SAta-600 / Sas 2.0
Storage Controller: Smart Array P420i With 1gb Fbwc
Raid Levels: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size: 1 GB
DISPLAY & GRAPHICS:
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
Video Interfaces : VGA
NETWORK & COMMUNICATION:
Networking: Network Adapter – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): Hp 331flr
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: Ipmi 2.0, Smash Clp
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On Lan (Wol), Pxe Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free):
1 (Total) / 1 (Free) X Front Accessible – 5.25inch X 1/2h
8 (Total) / 8 (Free) X Hot-Swap – 2.5inch Sff
Interfaces & Ports:
1 X Serial
1 X Vga
4 X Lan (Gigabit Ethernet)
1 X Hp Ilo
7 X Usb 2.0 ( 2 Front, 4 Rear, 1 Internal )
POWER DESCRIPTION:
Device Type: Power Supply – Hot Plug With Rail Kit
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460 Watt
DIMENSIONS & WEIGHT:
Height: 1.7 Inch
Width : 17.1 Inch
Depth : 27.5 Inch
Weight: 32.0 Lbs
