642105-001 Technical Specifications

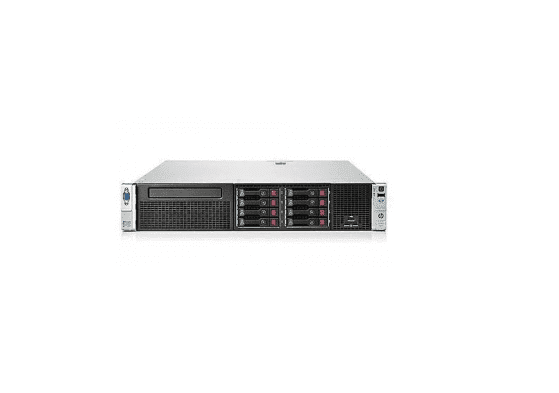

HP ProLiant DL380p G8 2U Rack Server 2 x Intel Xeon E5-2665 2.4GHz.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 642105-001
Product Name: Proliant Dl380p G8 – 2-Way 2u Rack Mount (Performance Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2665 / 2.40 Ghz
Multi-Core Technology: Octa-Core (8 Core)
64 Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Upgradability: Upgradable
Processor Main Features: Hyper Threading Technology
Chipset Model: Intel C600
CACHE MEMORY:
Type: L3 Cache
Installed Size: 40 Mb
Cache Per Processor: 20 Mb
MEMORY:
Installed Size: 32 Gb / 384 Gb (Max)
Technology: Ddr3 Sdram
Memory Speed: 1600 Mhz
Memory Specifications Compliance: Pc3-12800
Form Factor: Dimm 240-Pin
Number Of Total Memory Slots: 24 Ddr3 Slots
Features: Registered, Dual Rank, Quad Channel Memory Architecture, Hp Smartmemory
Configuration Features: 4 X 8 Gb
RAM SUPPORTED:
Pc3-12800 – 384 Gb – Registered
Pc3-10600 – 768 Gb – Load-Reduced
Pc3-12800 – 128 Gb – Unbuffered – Advanced Ecc
Pc3-10600 – 384 Gb – Hypercloud
STORAGE & STORAGE CONTROLLERS:</b
Hard Drive: None
Optical Drive Type : Dvd-Writer
Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Controller Interface Type: Sata-600 / Sas 2.0
Storage Controller Name: Smart Array P420i With 2gb Fbwc
Raid Level: Raid 0 Raid 1 Raid 5 Raid 10 Raid 50
Buffer Size: 2 Gb
DISPLAY & GRAPHICS:
Graphics Type: Integrated
Graphics Controller Model: Matrox G200
Video Interfaces : Vga
NETWORK & COMMUNICATION:
Networking Type : Plug-In Card
Interface (Bus) Type : Pci Express X8
Ethernet Controller : 10gb 2-Port 530flr-Sfp+ Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.1q, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3ap, Ieee 802.1au
POWER:
Device Type : Power Supply – Hot-Plug
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 750 Watt
