64114B2 Technical Specifications

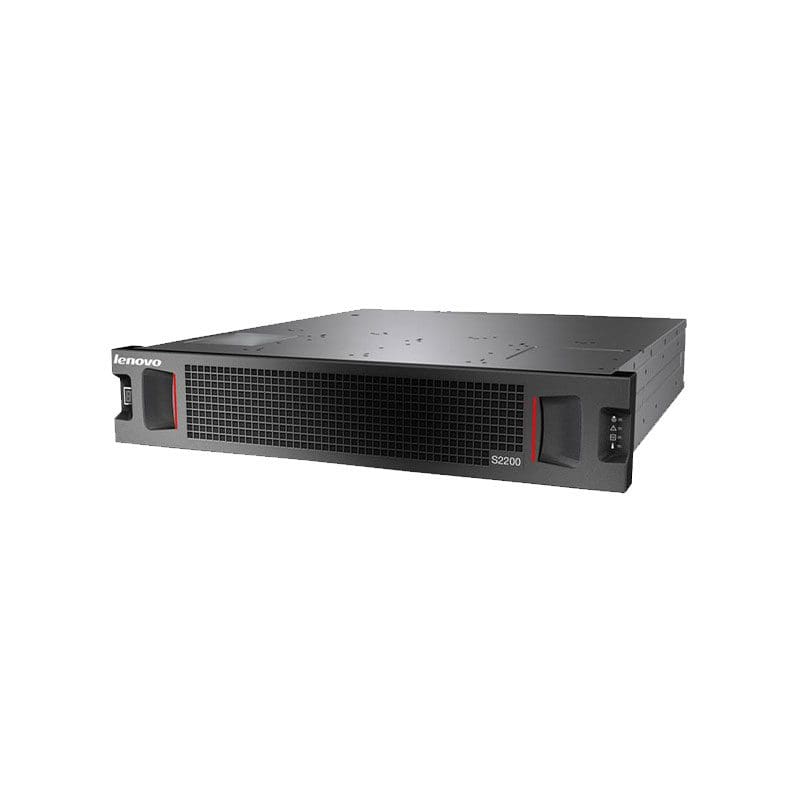

Lenovo Storage S2200 LFF 12-bays 3.5-inch FC / iSCSI Dual Controller Chassis
Manufacturer Part Number 64114B2
Brand Name Lenovo
Product Type SAN Storage System
Storage
Number of Hard Drives Supported 12
I/O Expansions
Number of Total Expansion Bays 12
Number of 3.5″ Bays 12
Controllers
Number of Controllers 2
Controller Type Serial Attached SCSI (SAS)
RAID Levels 0, 1, 5, 6, 10
1
5
6
10
Interfaces/Ports
Fibre Channel Yes
Physical Characteristics
Height 3.4″
Width 17.6″
Depth 20.6″
Form Factor Rack-mountable
Rack Height 2U
Weight (Approximate) 39.02 lb
