Refurbished 638328-001 Technical Specifications

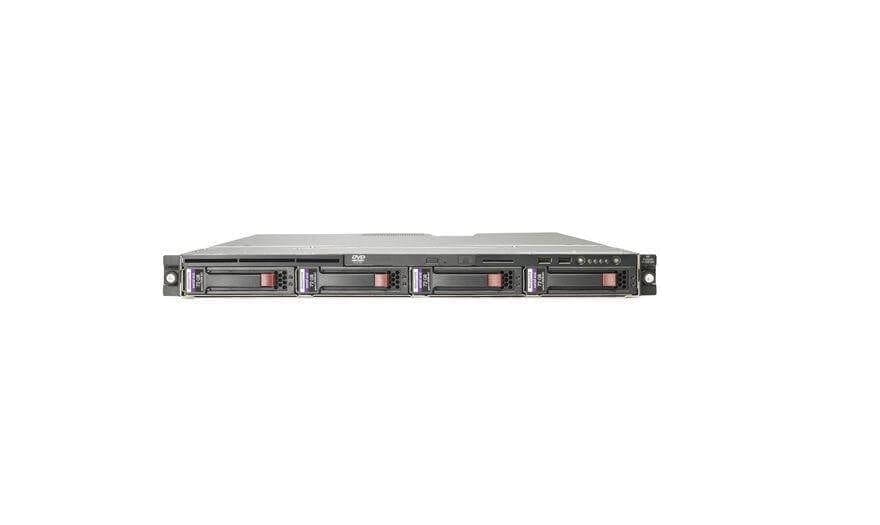

HP Proliant Dl320 G6 1x Intel Xeon E5603 Qc 1.66GHz 4GB RAM SATA/SAS 2x Gigabit Ethernet 1u Rack Server.
GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 638328-001
Product Name : Proliant Dl320 G6 – 1u Rack Mount (Entry Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5603/ 1.6 Ghz
Multi-Core Technology : Quad-Core (4 core)
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 1
Upgradability : Upgradable
Chipset Type : Intel 5500
CACHE MEMORY :
Type : L3 Cache
Installed Size : 4 Mb
Cache Per Processor : 4 Mb
MEMORY :
Installed Ram Size : 4 Gb / 192 Gb (Max)
Technology : Ddr3 Sdram
Memory Speed: 800 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 2 X 2 Gb
STORAGE CONTROLLER:
Simultaneous Drive Transfer Channels : 4 Channels
Transfer Rate Synchronous(Maximum Theoretical) : 150 Mb/S Per Channel
Drive Support : Serial Ata
Data Transfer Modes : Legacy Mode, Combined Mode
Protocol : Serial SAta (SATA/SAS)
Feature : Ncq (Native Command Queuing), Ahci (Advanced Host Controller Interface)
Raid Levels Supported : 0, 1, 1+0
Raid Features : Supports Multiple Logical Volumes, Seup Through Rom Based Array Configuration Utility, Installation Scripting Support
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 64 Mb
NETWORK & COMMUNICATION:
Networking: Network Adapter – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc326i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB.
