6241EHU Technical Specifications

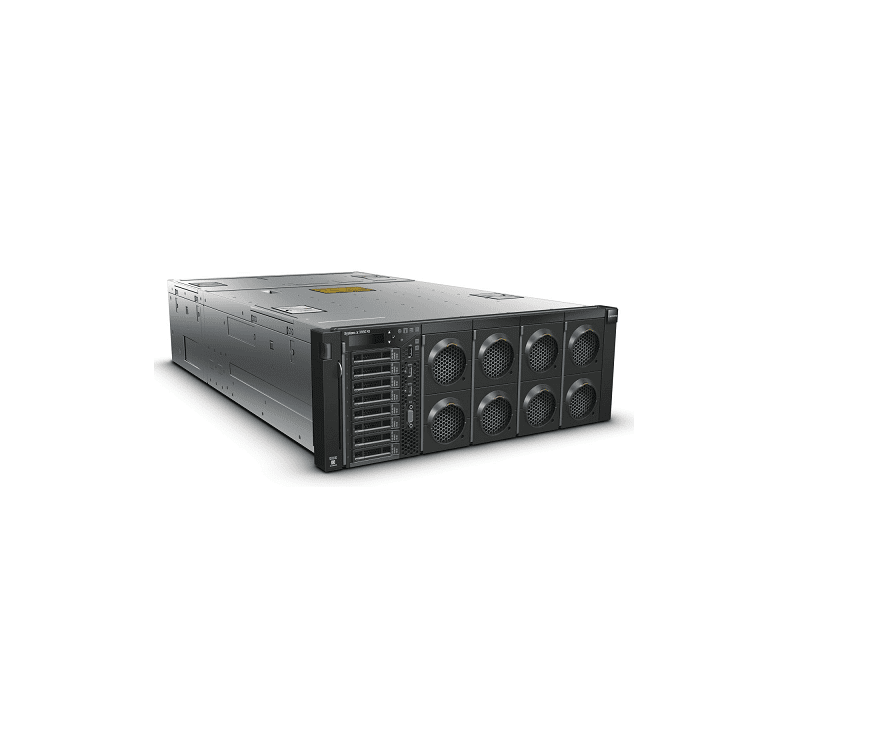

Lenovo System 6241EHU X3850 X6 Xeon E7-8880V3
General Information
Product Name Lenovo System 6241EHU X3850 X6 Xeon E7-8880V3 18C 16X16G 2X400G SSD 4X1400W
Product Line System x
Product Series x3850 X6
Product Model 6241EHU
Product Type Server
Controllers
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200eR2
Graphics Memory Capacity Up to 16 MB
Memory
Standard Memory 128 GB
Power Description
Number of Power Supplies Installed 4
Maximum Power Supply Wattage 1400 W
Redundant Power Supply Yes
Storage
Total Hard Drive Capacity 7.20 TB
Hard Drive Configuration 6 x 1.20 TB
Total Solid State Drive Capacity 800 GB
Solid State Drive Configuration 2 x 400 GB
Optical Drive Type No
Processor & Chipset
Number of Processors Supported 4
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E7-8880 v3
Processor Core Octadeca-core (18 Core)
Processor Speed 2.30 GHz
Physical Characteristics
Form Factor Rack-mountable
Rack Height 4U
Height 6.8″
Width 19″
Depth 31.6″
