615415-002 Technical Specifications

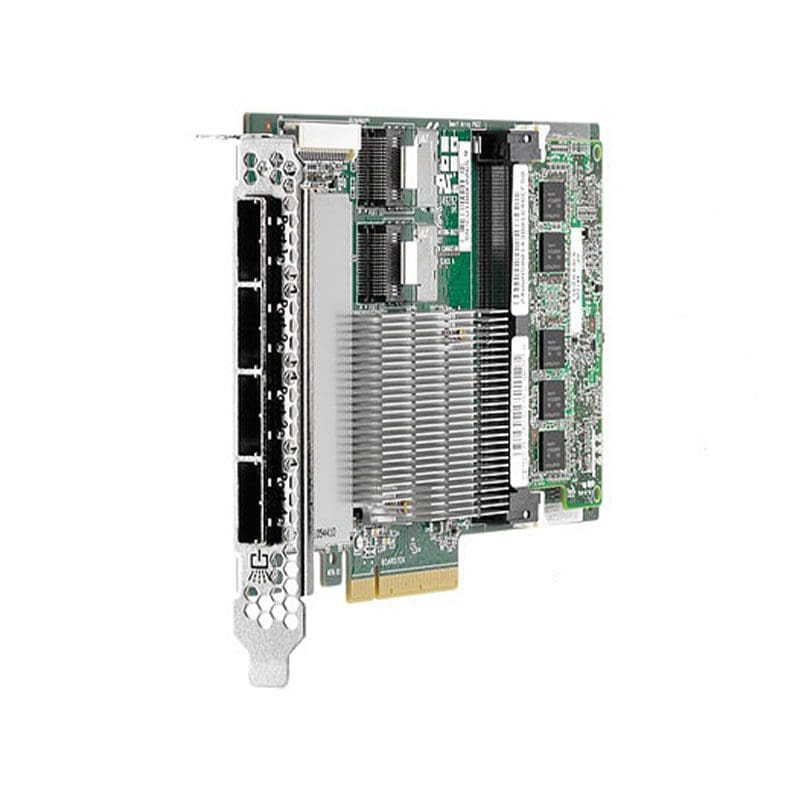

HP Smart Array P822 Pci Express 3.0 X8 Sas/sata Raid Controller With 2gb Fbwc
Manufacturer : Hp
Manufacturer Part Number : 615415-002
Product Name : Smart Array P822 Controller
Specification
Controller Interfaces Type: Serial Ata/600 . Serial Attached Scsi (sas)
Bus Type: Pci Express 3.0 X8
Data Transfer Rate: 768 Mbps
Raid Supported: Yes
Raid Levels: Raid 0 . Raid 1 . Raid 1+0 . Raid 5 . Raid 6 . Raid 50 . Raid 60 . Raid Jbod . Raid 1 Adm
Drive Supported: Up To 227
Platform Supported: Pc
Data Backup Type: Flash-backed Cache
Ports: 2 X 6gb/s Sas – Mini-sas Internal
4 X 6gb/s Sas – Mini-sas External
