Refurbished 603719-B21 Technical Specifications

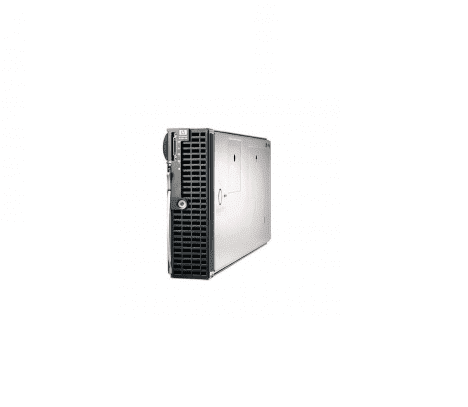

HP Proliant Bl490c G7 CTO With No CPU No RAM 2×10 Gigabit Ethernet 2-Way Blade Server.
General Information :
Manufacturer : hewlett packard
Manufacturer part number : 603719-B21
Product name : proliant bl490c- g7 base blade server cto
Processor & chipset :
Processor type : no cpu
Max supported qty : 2
Upgradability : upgradable
Chipset type : intel 5520
Ram :
Installed size : 0 gb
Max supported size : 192 gb
Technology : ddr3 sdram
Form factor : dimm 240-pin
Ram supported :
pc3-10600 – 192 gb – registered
pc3-10600 – 48 gb – unbuffered
Storage & storage controller :
Hard drive : none
Optical drive: none
Storage controller type : 1 x serial Sata – integrated
Display & graphics controllers :
Graphics controller type : integrated
Graphics processor : matrox mga g200
Resolution color depths :
1600 x 1200, 64k, 256, 16
1280 x 1024, 16.7m, 64k, 256, 16
1024 x 768, 16.7m, 64k, 256, 16
800 x 600, 16.7m, 64k, 256, 16
640 x 480, 16.7m, 64k, 256, 16
Network & communication :
Networking : network adapter – pci express 2.0 x8 – integrated
Ethernet ports : 2 x 10 gigabit ethernet
Ethernet controller(s) : 2 x hp nc382i
Data link protocol : gigabit ethernet, 10 gigabit ethernet
Remote management controller : integrated lights-out 3
Features : wake on lan (wol)
Compliant standards :
Ieee 802.1q
Ieee 802.1p,
Ieee 802.3x,
Ieee 802.3ad (lacp),
Ieee 802.3ap
Expansions & connectivity :
Expansion bays total (free) :
2 (total) / 2 (free) x internal
Expansion slots total (free) :
2 (total) / 2 (free) x processor
18 (total) / 18 (free) x memory – dimm 240-pin
2 (total) / 2 (free) x expansion slot ( x8 mode )
Interfaces & ports :
1 x management – hp ilo – rj-45
2 x network – ethernet 10gbase-kr – rj-45
1 x display / video – vga – 15 pin hd d-sub (hd-15
Compliant standards :MsoNorma
