600477-001 Technical Specifications

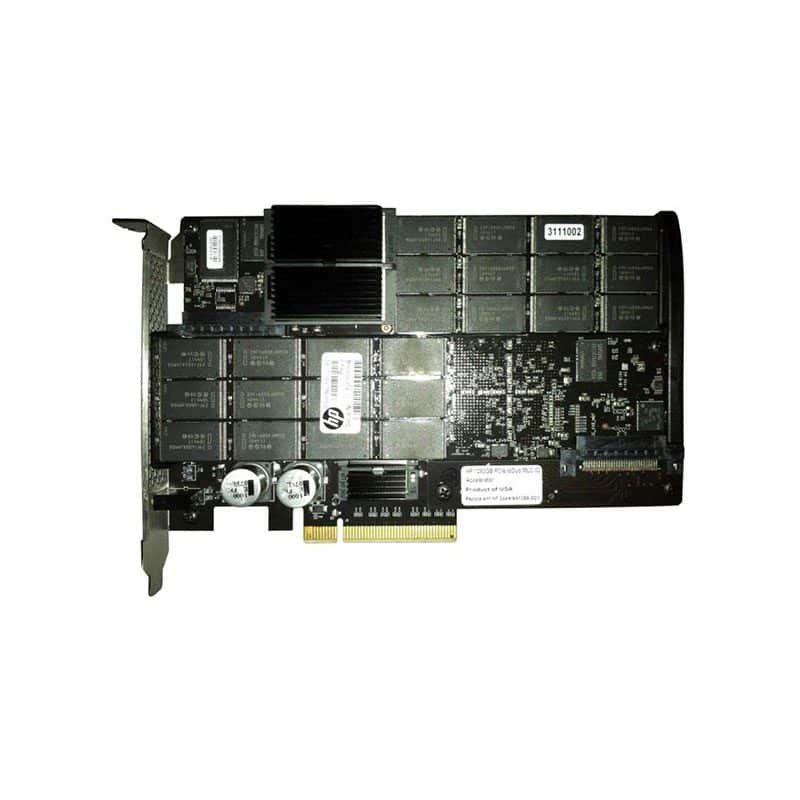

HP 320GB Single Level Cell Pcie Iodrive Duo For Proliant
General information :
manufacturer : hewlett-packard
product name: hp 320gb single level cell pcie iodrive duo.
Technical information :
storage capacity : 320gb
technology : nand flash, slc. PCIe
Bus interface : pci express x 8 or pci express 2.0 x 4
bandwidth (64kbytes) : 1.0gb/s writes 1.5gb/s reads
access latency (512 byte) : 26 microseconds
Single-Level Cell (Slc)
iops : 238,000 (75/25 r/w mix) SSD
form factor : plug-in module (full height/half length pci express 2.0)
power (nominal) : pci express power spec 2.0
operating temperature: 0-55°c (operational)/-40-70°c (non-operational)
supported driver version: 2.x and higher.
Compatibility:
first generation accelerators support:
dl160 g6, dl160 gen8, dl180 g6, dl360 g6, dl360 g7, dl980 g7
dl360e gen8, dl360p gen8, dl370 g6, dl380 g6, dl380 g7
dl380e gen8, dl380p gen8, dl385 g6, dl385 g7, dl385p gen8
dl580 g5, dl580 g7, dl585 g6, dl585 g7, dl785 g5, dl785 g6
ml370 g6, ml350p gen8, ml370 g6
proliant sl160z g6 (600282-b21 and 641027-b21 only)
proliant sl170z g6 (600282-b21 only).
