5JH81AA Technical Specifications

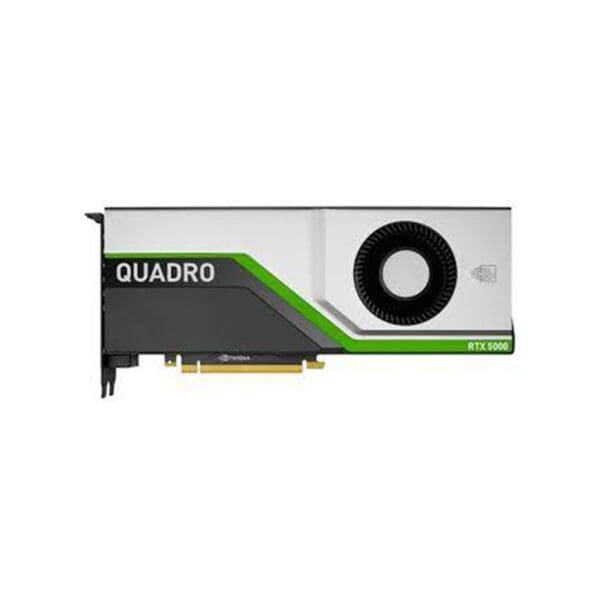

HP NVIDIA Quadro RTX 5000 16GB (4)DP+USBc
Manufacturer: HPE
Brand: HPE
GPU Model: NVIDIA Quadro RTX 5000
Stream Processors: 3072 CUDA Cores
Interface: PCI Express 3.0 x16
Supported APIs:
DirectX: 12
Shader Model: 5.1
OpenGL: 4.6
Vulkan: 1.1
OS Compatibility: Linux, Windows
GPU Memory: 16 GB
Memory Interface: GDDR6
Memory Bandwidth: 448 GB/s
Display Support: Video I/O
4x DisplayPort 1.4: 1x USB-C
Maximum Digital Resolution: 7680 x 4320 @ 60 Hz
Power Requirements
Max Power Consumption: 265 W
PCI Power Connectors: No
Expansion Slot Compatibility: Full Height
Height: 4.4″ / 111.76 mm
Length: 10.5″ / 266.70 mm
GPU Width: Dual-Slot
Cooler Type: Blower-Style Fan with Single Fan
Packaging Info
Package Weight: 3 lb
Box Dimensions (LxWxH): 17.5 x 9 x 3.3″
