Refurbished 589152-001 Technical Specifications

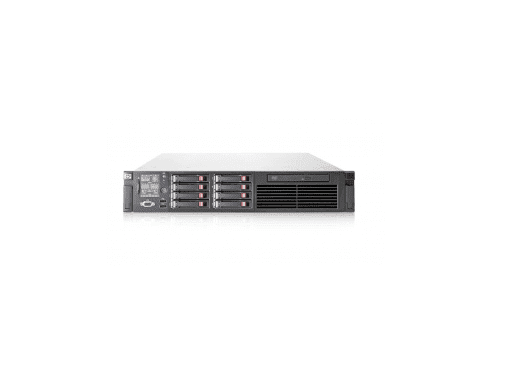

HP Proliant Dl380 G7 Base Models 1 X Intel Xeon Qc E5620 / 2.40 GHz 6GB RAM DDR3 SDRAM SAS/SATA Gigabit Ethernet 2u Rack Server.
GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 589152-001
Product Name : Proliant Dl380 G7 2u Rack Mount (Base Model)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5620(2.40 Ghz, 12mb L3 Cache, 80w)
Multi-Core Technology : Quad-Core (4 core)
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable.
64-Bit Computing : Yes.
Chipset Type : Intel 5520
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb.
RAM :
Installed Size : 6gb
Max Supported Size : 192gb
Ram Technology : Ddr3 Sdram.
Memory Speed : 1333 Mhz.
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered.
Configuration Features : 3 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : None.
Internal Storage :
Standard: 8 Sff Sas/Sata Hdd Bays.
Optional: 16 Sff Sas/Sata Hdd Bays.
Storage Controller : 1 X Raid, Plug-In Card, Pci Express X8
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 5, Raid 1+0, Raid 5+0
Buffer Size : 256 Mb.
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor: Ati Es1000
Max Allocated Ram Size : 64 Mb
Supported Resolution :
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking : Network Adapter, Pci Express X4, Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
