589047-B21 Technical Specifications

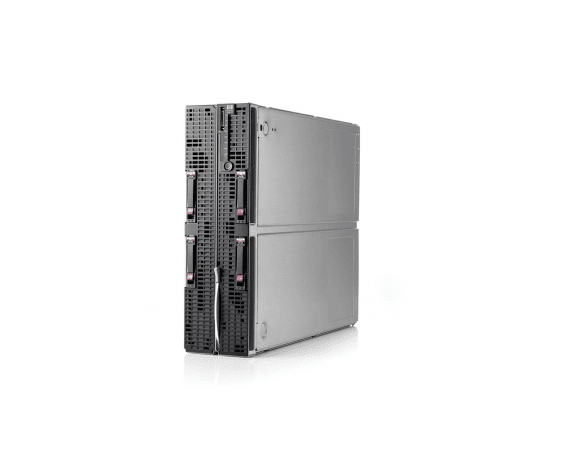

HP Proliant Bl680c G7 2x Intel Xeon E7530 Hc 1.86 GHz 16GB RAM SAS SATA 6x 10gigabit Ethernet Blade Server.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard.
Manufacturer Part Number: 589047-B21
Product Name: Proliant Bl680c G7 Blade Server.
PROCESSOR & CHIPSET:
Processor Type : Intel Xeon E7530 (1.86ghz/6-Core/12mb, 5.86gt/S Qpi, 105w)
Multi-Core Technology : 6 Core
64-Bit Computing : Yes
Installed Qty: 2
Max Supported Qty: 4
Processor Main Features: Intel Quickpath Interconnect
Upgradability: Upgradable.
Chipset Type : Intel 7500
CACHE MEMORY:
Cache Memory Type : L3 Cache.
Installed Size : 24 Mb.
Cache Per Processor : 12 Mb.
RAM:
Installed Size : 16 Gb
Max Supported Size : 1 Tb
Technology: Ddr3 Sdram
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 4 X 4 Gb
STORAGE & STORAGE CONTROLLER:
Hard Drive :None.
Mas Supported Hdd: 4(Four) Hot-Plug Sff Sas/Sata/Sdd Drives
Optical Drive : None.
Internal Storage : Sas: 4.0tb, Sata: 4.0tb, Sas Ssd: 3.2tb, Sata Ssd: 480gb
Storage Controller Type: 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type: Serial Attached Scsi 2 (6gb)
Storage Controller Name: Smart Array P410i
Raid Level: Raid 0, Raid 1
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated
Graphics Processor: Ati Rn-50 1280 X 1024 X 16m Color
Resolution Color Depths:
1280 X 1024, 16.7m , 64k, 256,16
1024 X 768, 16.7m, 64k, 256, 16
800 X 600, 16.7m, 64k, 256, 16
640 X 480, 16.7m, 64k, 256, 16
NETWORKING:
Networking: Network Adapter – Pci Express 2.0 X8 – Integrated
Ethernet Ports: 6 X 10 Gigabit Ethernet
Ethernet Controller: Hp Nc553i
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol: Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller: Integrated Lights-Out 3
Compliant Standards:
Ieee 802.1q, Ieee 802.1p, Ieee 802.3x,
Ieee 802.3ad (Lacp), Ieee 802.3ap
