572532-B21 Technical Specifications

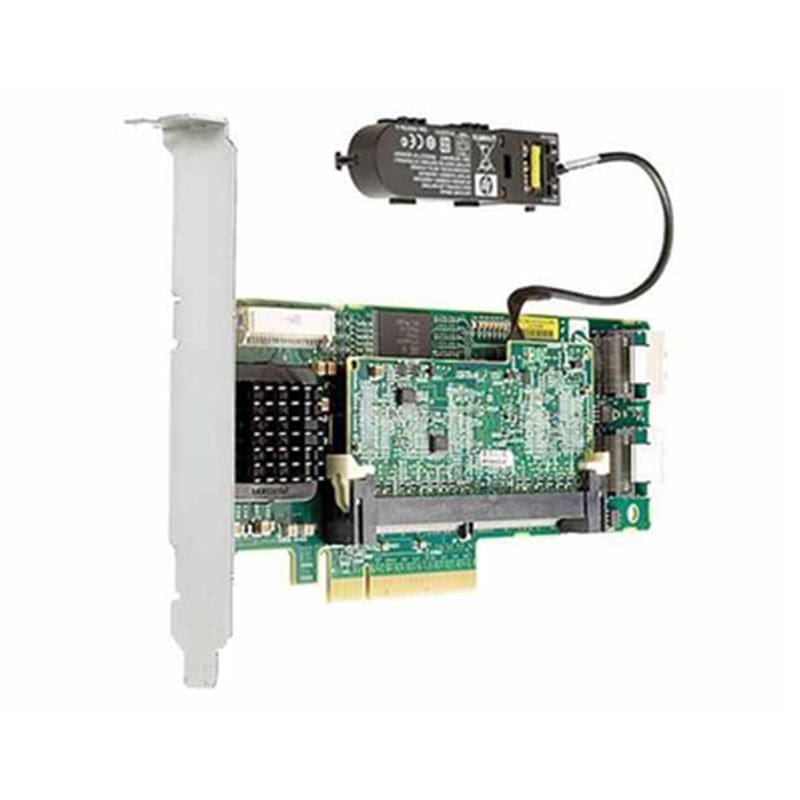

HP Smart Array P410/1G FBWC 2-ports PCIe x8 SAS Controller
Manufacturer Name: HP
Device Type: Storage controller (RAID) – plug-in card – low profile
Host Bus: PCIE 2.0 x8
Storage Controllers
Interface: SATA 1.5GB/s / SAS
Data Transfer Rate: 300 MBPS
Buffer Size: 1 GB
Supported Devices: Hard drive, disk array (RAID)
Max Storage Devices Qty: 64
RAID Level: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Processor Power: PC 440
Expansion / Connectivity
Interfaces: 2 x SATA 1.5GB/s / SAS – 32 pin 4i MultiLane SAS (SFF-8484) (internal)
