572531-B21 Technical Specifications

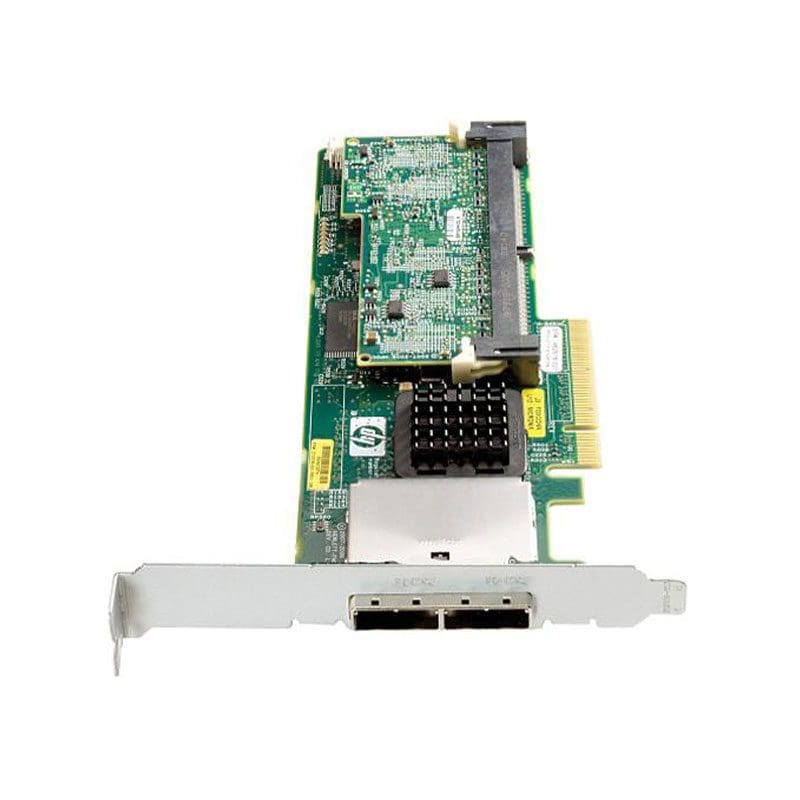

HPE Smart Array P411 1GB Cache SAS 3Gbps PCI Express 2.0 x8 0/1/5/10/50 RAID Controller Card
Manufacturer Part Number 572531-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express 2.0 x8
Controller Type Serial ATA/300
RAID Supported Yes
RAID Levels 0
1
1+0
5
5+0
6
50
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
Number of SAS Ports (External) 2
SAS Connector Details 2 SFF-8088
Physical Characteristics
Height 7.6″
Width 11″
Thickness 1.3″
Form Factor Plug-in Card
Weight (Approximate) 2.40 lb
