5520-48T Technical Specifications

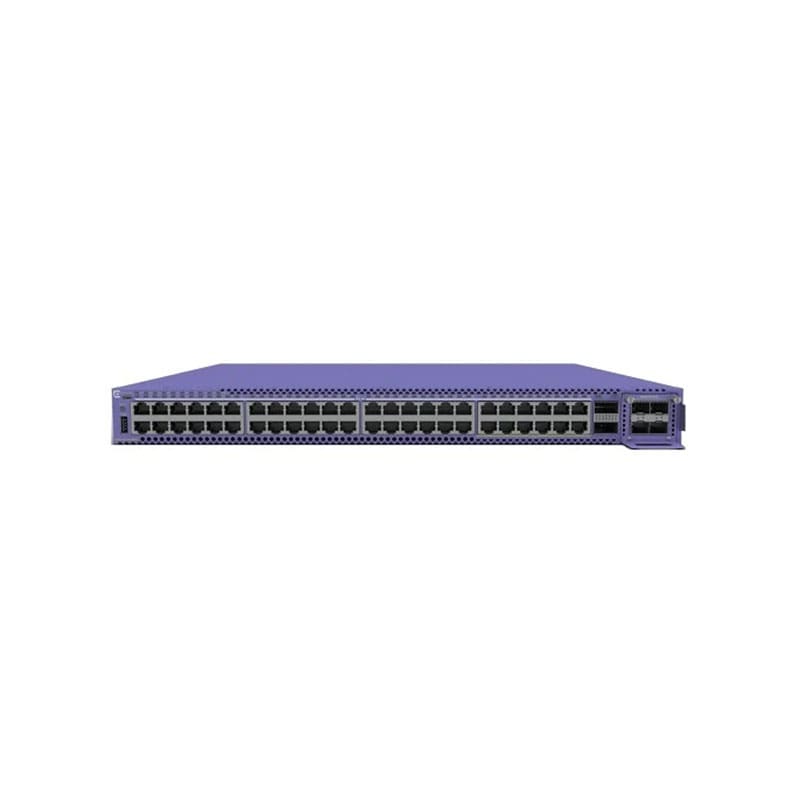

Extreme Networks ExtremeSwitching 5520 series 5520-48T Switch 48 ports Managed Rack-Mountable
Brand: Extreme Networks
Product Line: Extreme Networks ExtremeSwitching 5520 series
Model: 5520-48T
Manufacturer: EXTREME NETWORKS
Network & Communication
Advanced Switching: Layer 3
Compliant Standards: IEEE 802.3ab, IEEE 802.3az
Form Factor (Hubs & Switches): Rack-mountable
Manageable: Yes
Max Units In A Stack: 8
Ports: 48
Product Type: Switch
Subcategory: Network hubs and switches
Switching Type: Gigabit Ethernet
Expansion Slots: 1 (total) / 1 (free) x Versatile Interface Module (VIM)
Connectivity
Port Quantity: 48
Port Type: 10/100/1000
Power
Frequency: 50/60 hertz
Power Consumption Operational: 171 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Software
Software Type: ExtremeCloud IQ Pilot (1 year)
Technical Information
Humidity Range Storage: 10 – 95% (non-condensing)
Max Operating Temperature: 122 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
