5520-24X Technical Specifications

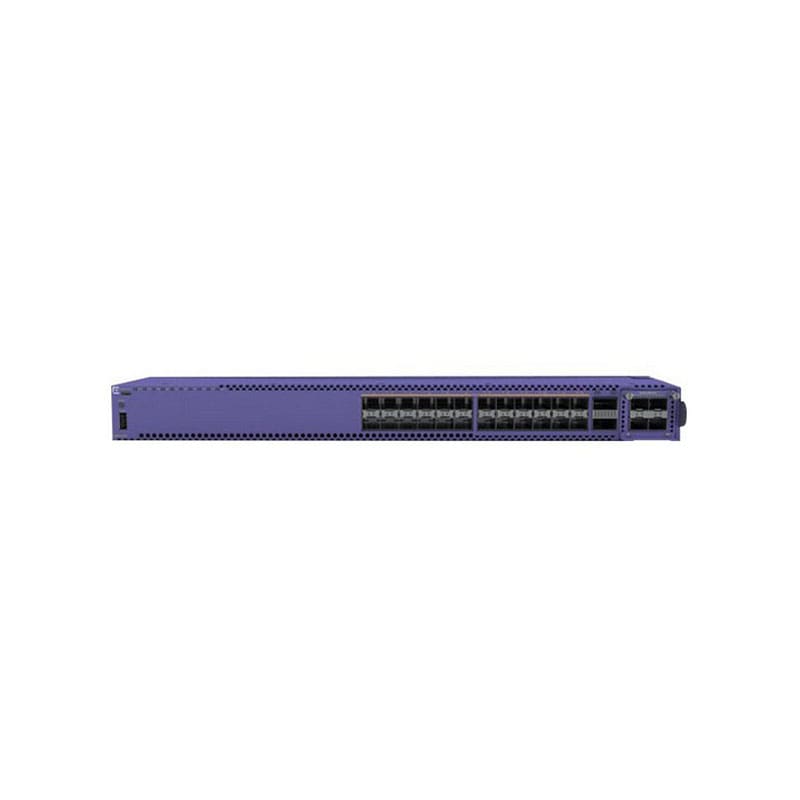

Extreme Networks ExtremeSwitching 5520 series 5520-24X Switch 24 ports Managed Rack-mountable
Product Type: Ethernet Switch
Manageable: Yes
Ethernet Technology: 10 Gigabit Ethernet, 100 Gigabit Ethernet
Number of Total Expansion Slots: 27
Product Family: ExtremeSwitching 5520
Stack Port; Yes
Media Type Supported: Optical Fiber
Redundant Power Supply Supported: Yes
Expansion Slot Type: SFP+
Versatile Interface Module: (VIM), QSFP28
Form Factor: Rack-mountable
Power Consumption: 171 W
Power Source: Power Supply
Layer Supported: 3
Number of Power Supplies Supported: 2
Number of SFP+ Slots: 24
Modular: Yes
Port / Expansion Slot Details: 24 x 10 Gigabit Ethernet Expansion Slot, 2 x Stack
Height: 1.7″
Width: 17.4″
Depth: 17.4″
Product Series: 5520
Product Model: 5520-24X
Network Technology: 10GBase-X, 100GBase-X
Product Line: ExtremeSwitching
