Refurbished 517429-005 Technical Specifications

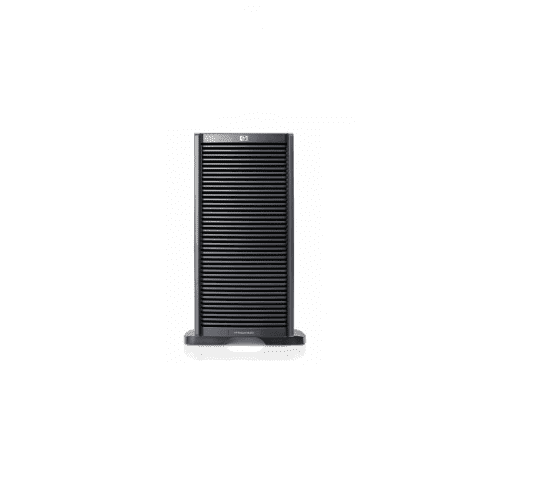

HP Proliant Ml350 G6 E5520 1 X Xeon 2.26GHz/4MB 4GB RAM SAS / SATA DVD Gigabit Ethernet RAID Controller 5u Tower Server.
GENERAL INFORMATION:
Manufacturer : Hewlett-Packard
Manufacturer Part Number : 517429-005
Product Name : Proliant Ml350 G6 – 5u Tower Server (Performance Model – S/Buy)
PROCESSOR & CHIPSET:
Processor Type : Intel Xeon E5520 Quad-Core 2.26 Ghz.
Installed Qty : 1
Max Supported Qty : 2
Processor Technology:
Chipset : Intel 5520
Data Bus Speed: 1066 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache.
Installed Size : 8 Mb.
Cache Per Processor : 8 Mb
RAM :
Installed Ram Size : 4 Gb
Max Supported Size : 192 Gb
Technology : Ddr3 Sdram – Advanced Ecc.
Memory Speed : 1066 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered, Dual Rank.
Configuration Features : 2 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : Dvd-Rom – SAta .
Storage Controller Type(1st) : 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type : Serial Ata-150 / Sas
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 256 Mb
Storage Controller Type(2nd): 1 X Serial Ata – Integrated.
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type: Integrated
Graphics Processor : Ati Rn50
Video Memory : 64 Mb
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci Express X4 – Integrated.
Ethernet Ports : 2 X Gigabit Ethernet.
Ethernet Controller : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Features : Wake On Lan (Wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION :
Power Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 750 Watt
