Refurbished 513601-001 Technical Specifications

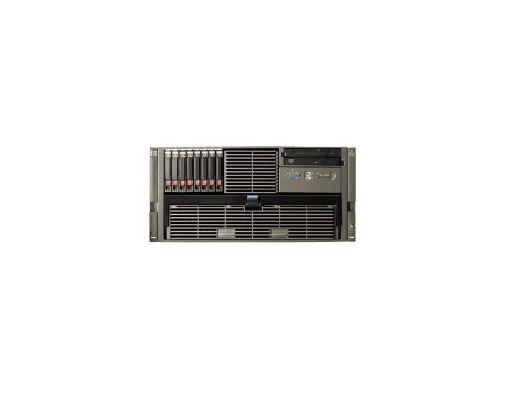

HP Proliant Dl585 G5 4x Amd Opteron Quad Core 8386 Se/2.8GHz L3 Cache 16GB Ddr2 Sdram, Combo, Smart Array P400 Controller With 512mb Bbwc, 2x HP Nc371i Network Controller, Ilo-2, 2x Ps, 4u Rack Server.
General Information :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 513601-001
Product Name : Proliant -Dl585 G5 4u Rack Mount Server
Processor & Chipset :
Processor Type : Amd Third-Generation Opteron 8386 Se / 2.8ghz
Multi-Core Technology : Quad-Core
64-Bit Computing : Yes
Installed Qty : 4
Max Supported Qty : 4
Cache : L2 – 4 X 512 Kb
Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 6 Mb
Memory :
Installed Size : 16 Gb
Maximum Size : 256 Gb
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 800 Mhz
Memory Specification Compliance : Pc2-6400
Form Factor : Dimm 240-Pin
32 DDR2 Slots
Features : Registered
Configuration Features : 8 X 2 Gb
Storage :
Hard Drive : None
Optical Storage Type : Cd-Rw / Dvd-Rom Combo – Ide
Read Speed : 24x (Cd) / 8x (Dvd)
Storage Controller :
Storage Controller (1st) Type : 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type : SAta-150 / Sas
Storage Controller Name : Smart Array P400
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10
Buffer Size : 512 Mb
Storage Controller (2nd) Type : 1 X Ide – Integrated
Display & Graphics Controllers :
Graphics Controller Type : Integrated
Video Memory : 32 Mb
Network & Communication :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller(S) : 2 X Hp Nc371i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Etherne
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol), Dhcp Support, Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansions & Connectivity :
Expansion Bays Total (Free) :
1 (Total) / 1 (Free) X Front Accessible – 3.5in Slim Line
1 (Total) / 0 (Free) X Front Accessible – 5.25in Slim Line
8 (Total) / 8 (Free) X Hot-Swap – 2.5in Sff (8 Bays)
Expansion Slots Total (Free) :
32 (Total) / 24 (Free) X Memory – Dimm 240-Pin
4 (Total) / 0 (Free) X Processor
2 (Total) / 2 (Free) X Pci-X / 100 Mhz
4 (Total) / 4 (Free) X Pci Express X4
3 (Total) / 2 (Free) X Pci Express X8
