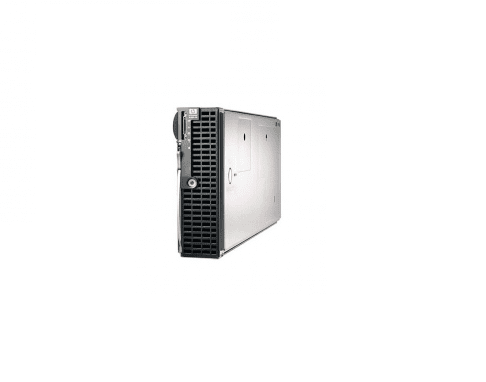

Refurbished 507785-B21 Technical Specifications
HP Proliant Bl280c G6 1x Intel Xeon Quad-Core L5520/2.26GHz 2GB RAM 2x Gigabit Ethernet Blade Server.
General information :
Manufacturer: Hewlett Packard
Manufacturer part number: 507785-B21
Product name: proliant bl280c g6 blade server
Processor & chipset :
Processor type: intel xeon l5520 / 2.26 GHz
Multi-core technology: quad-core
Installed processor qty: 1
Max supported qty: 2
64-bit computing: yes
Compatible processor socket: lga1366 socket
Upgradability: upgradable
Chipset type: intel 5500
Data bus speed: 1066 mhz
Cache memory :
Cache memory type: l3 cache
Installed size: 8 mb
Cache per processor: 8 mb
Memory :
Installed size: 2 gb
Maximum size: 192 gb
Technology: ddr3 sdram
Memory speed: 1333 mhz
Memory specification compliance: pc3-10600
Form factor: dimm 240-pin
Features: registered
Configuration features: 1 x 2 gb
12 DDR3 Slots
Storage & storage controllers :
Hard drive: none
Storage controllers type: Sata – integrated
Controller interface type: serial ata-300
Raid level: raid 0, raid 1
Display & graphics controller :
Graphics controller type: integrated
Video memory: 32 mb ddr sdram
Networking :
Networking: network adapter – integrated
Ethernet ports: 2 x gigabit ethernet
Ethernet controller(s): hp nc362i
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Remote management controller: integrated lights-out 2
Features: wake on lan (wol)
Compliant standards: ieee 802.3, ieee 802.1q, ieee 802.3x, ieee 802.3ad (lacp), ieee 802.3p
Expansion & connectivity :
Expansion bays total (free):
2 ( 2 ) x internal – 2.5 sff (2 Bays)
Expansion slots total (free):
12( 10) x memory – dimm 240-pin
2 ( 1 ) x processor
Interfaces & ports :
2 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
1 x management – hp ilo – rj-45
