Refurbished 504637-001 Technical Specifications

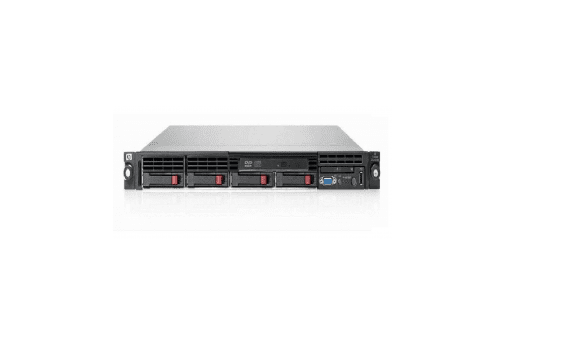

HP Proliant Dl360 G6 1x Xeon E5504 Qc 2.0 GHZ 4GB RAM SAS Gigabit Ethernet Raid Controller 1u Rack Server.
GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 504637-001
Product Name: Proliant Dl360 G6 1u Rack Mount Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5504 Quad-Core 2.0 Ghz
Installed Qty : 1
Max Supported Qty : 2
Processor Technology : Em64t
Virtualization Technology
Enhanced Speedstep Technology
Chipset : Intel 5520
Data Bus Speed : 1066 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 4 Mb
RAM :
Installed Ram Size : 4 Gb
Max Supported Size : 192 Gb
Technology : Ddr3 Sdram – Advanced Ecc
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered, Memory Mirroring
Configuration Features : 2 X 2 Gb
RAM SUPPORTED :
Pc3-10600 – 24 Gb – Unbuffered
Pc3-8500 – 192 Gb – Registered
Pc3-10600 – 144 Gb – Registered
STORAGE :
Hard Drive : None
Maximum Internal Storage Support : 2.40 Tb Hot Swap Sas
Optical Drive : None
STORAGE CONTROLLER :
Storage Controller Type : 1 X Raid – Integrated – Pci Express 2.0 X4
Controller Interface Type : SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb
NETWORK & COMMUNICATION :
Network Adapter : Pci Express X4 – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.1Q
IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AD (LACP)
POWER DESCRIPTION :
Power Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt
