Refurbished 504271-B21 Technical Specifications

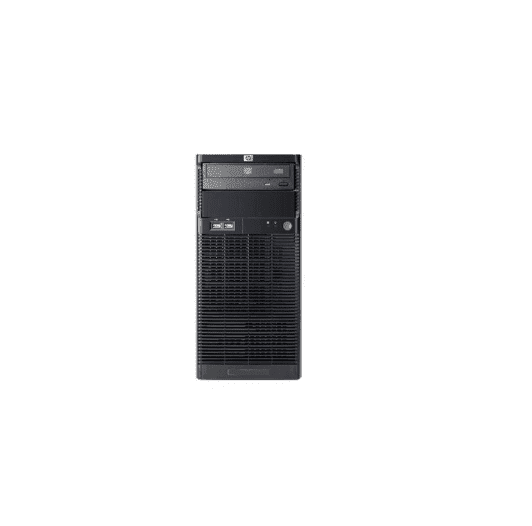

HP Proliant Ml330 G6 No Processor No RAM No HDD SATA DVD ROM 2x Gigabit Ethernet 5u Tower Server.
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 504271-B21
Product Name: Proliant Ml330 G6 – 5u Rack Mount Server (Cto Chassis)
PROCESSOR & CHIPSET :
Cpu : No CPU
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Chipset Type : Intel 5500
MEMORY :
Installed Ram Size : 0 Mb / 144 Gb (Max)
Technology : Ddr3 Sdram
Form Factor : Dimm 240-Pin
Memory Slots : 18 Dimm Slots (18 DDR3 Slots)
STORAGE :
Hard Drive: None
Optical Drive : None
STORAGE CONTROLLERS :
Type : Raid – Integrated
Controller Interface Type : Sata 3gb/S
Storage Controller Name : Smart Array B110i
Raid Level : Raid 0, Raid 1, Raid 10
GRAPHICS CONTROLLER :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 64 Mb
Video Interfaces : Vga
NETWORKING:
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free):
3 (Total) / 3 (Free) X External 5.25 X 1/2h
8 (Total) / 8 (Free) X Internal 3.5 X 1/3h (8 Bays)
Expansion Slots Total (Free):
2 (Total) / 2 (Free) X Cpu
12 (Total) / 12 (Free) X Dimm 240-Pin
2 (Total) / 2 (Free) X Pcie 2.0 X8 – Half-Length ( X4 Mode )
1 (Total) / 1 (Free) X Pcie X8 – Half-Length ( X1 Mode )
1 (Total) / 1 (Free) X Pcie 2.0 X16 – Half-Length
INTERFACES & PORTS:
1 X Serial
6 X Usb 2.0
1 X Vga
3 X Lan (Gigabit Ethernet)
1 X Ps/2 Keyboard
1 X Ps/2 Mouse
DIMENSIONS & WEIGHT:
Width : 7.9 In
Depth : 24.1 In
Height: 16.8 In
Weight: 35.3 Lbs
