4Y37A72482 Technical Specifications

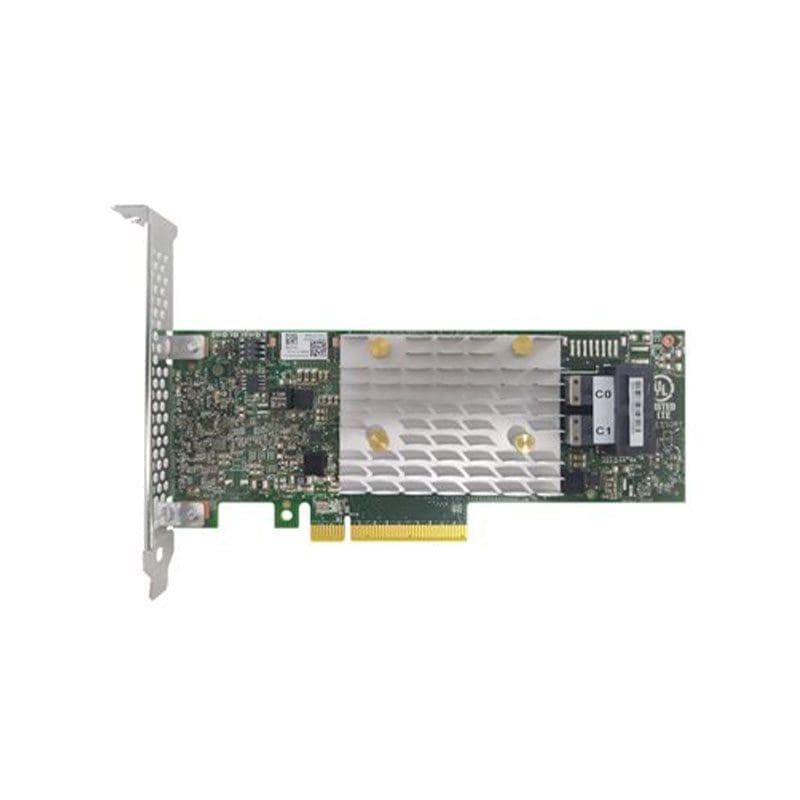

Lenovo ThinkSystem 5350-8i Storage Controller SATA 6Gb/s / SAS 12Gb/s
Manufacturer
Lenovo ESG Server Options
Brand
Lenovo
Product Line
Lenovo ThinkSystem
Model
5350-8i
Packaged Quantity
1
General
Product Type
Storage controller
Processor
Type
SmartIOC 2100
Processor Number
PM8222
Manufacturer
Adaptec
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 3.0 x8
Low Profile
Low profile
Data Transfer Rate
12 Gbit/s
Interface
SATA 6Gb/s / SAS 12Gb/s
Channel Qty
8
RAID Level
JBOD, RAID 0, RAID 1, RAID 10, RAID 5
Interface Provided
Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8643) (internal)
Software
Type
Adaptec maxView Storage Manager
Power Device
Type
None
System Requirements
OS Required
Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP2, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi) Update 2
Miscellaneous
Color Category
Green, Silver
Compliant Standards
AS/NZS 3548, EN 55032, EN55024, FCC CFR47 Part 15 B, FCC Part 15 A, ICES-003 Class B, IEC/EN/UL 60950, KCC, RoHS, VCCI
Features
S.M.A.R.T. support
Dimensions & Weight
Depth
6.6 inch
Height
2.5 inch
Service & Support
Type
1-year warranty
Service & Support Details
Service & Support
Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature
32 degree Fahrenheit
Max Operating Temperature
131 degree Fahrenheit
Humidity Range Operating
20 – 80% (non-condensing)
Compatibility
Compatible With
Lenovo ThinkSystem SR630 V2 7Z70, 7Z71 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73
