4Y37A09730 Technical Specifications

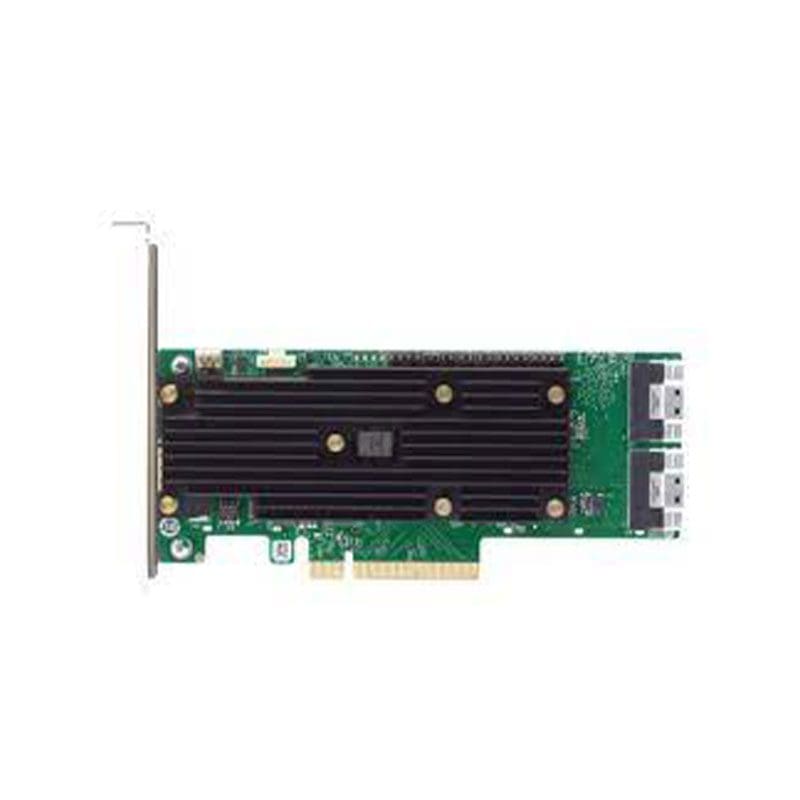

Lenovo ThinkSystem 94016i Storage Controller (RAID) SATA / SAS 12Gb/s
Manufacturer
Lenovo System X
Brand
Lenovo
Product Line
Lenovo ThinkSystem
Model
940-16i
Packaged Quantity
1
General
Product Type
Storage controller (RAID)
Processor
Processor Number
SAS3916
Manufacturer
Broadcom
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 4.0 x8
Low Profile
Low profile
Data Transfer Rate
12 Gbit/s
Interface
SATA / SAS 12Gb/s
Channel Qty
16
Supported Devices
Disk array (RAID), Hard drive, Solid state drive
Max Storage Devices Qty
16
Buffer Size
8 GB
RAID Level
JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Interface Provided
Interfaces
2 x SAS 12Gb/s – Slim SAS (SFF-8654) (internal)
Power Device
Type
None
System Requirements
OS Required
Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 8.1, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, VMware ESXi 6.7 update 3, VMware ESXi 7.0
Miscellaneous
Color Category
Green
Compliant Standards
AS/NZS CISPR 22, CNS 13438, EN55022, EN55024, FCC CFR47 Part 15 B, ICES-003 Class B, IEC/UL 60950, RoHS, VCCI V-3, WEEE
Features
CacheVault flash cache protection, Consistency check, Fast initialization, FastPath, Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), Patrol Read, S.M.A.R.T. support, SafeStore, SecureBoot, Self-Encrypting Drive (SED) support
Service & Support
Type
1-year warranty
Service & Support Details
Service & Support
Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature
50 degree Fahrenheit
Max Operating Temperature
131 degree Fahrenheit
Humidity Range Operating
20 – 80% (non-condensing)
Compatibility
Compatible With
Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
