4Y37A09722 Technical Specifications

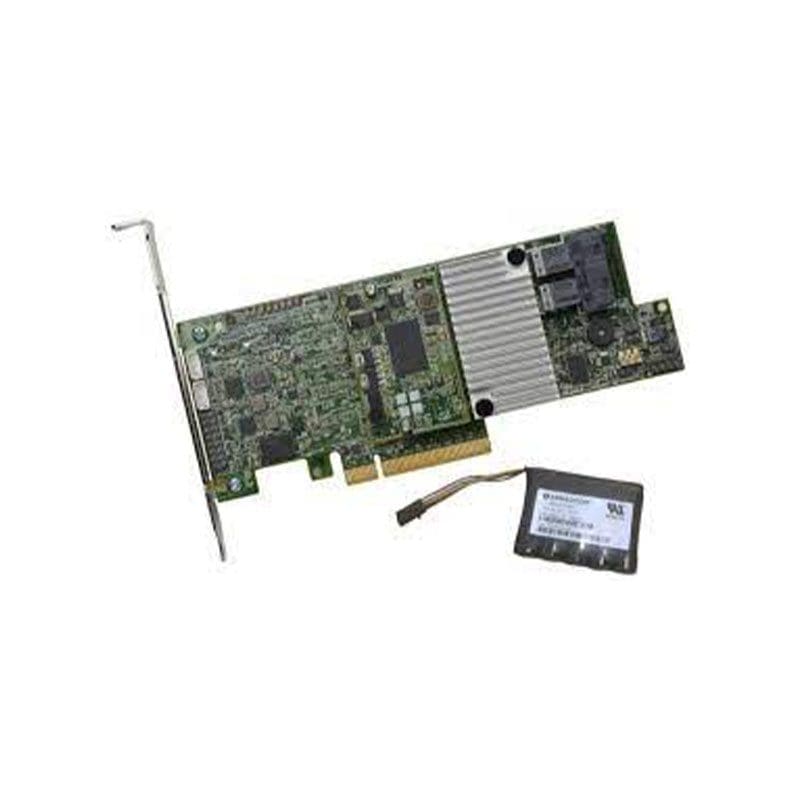

Lenovo ThinkSystem 730-8i Storage Controller (RAID) SATA / SAS 12Gb/s
Manufacturer
Lenovo System X
Brand
Lenovo
Product Line
Lenovo ThinkSystem
Model
730-8i
Packaged Quantity
1
General
Product Type
Storage controller (RAID)
Processor
Type
LSISAS3108
Manufacturer
LSI
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 3.0 x8
Low Profile
Low profile
Data Transfer Rate
12 Gbit/s
Interface
SATA / SAS 12Gb/s
Channel Qty
8
Supported Devices
Disk array (RAID), Hard drive, Solid state drive
Max Storage Devices Qty
8
Buffer Size
2 GB, 2 GB
RAID Level
JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Interface Provided
Interfaces
2 x SAS 12Gb/s – 4 x Mini SAS HD (SFF-8643) (internal)
Power Device
Type
None
System Requirements
OS Required
Microsoft Windows Server 2008 / 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 6.10, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 11 SP4 with Xen, SuSE Linux Enterprise Server 12 SP2, SuSE Linux Enterprise Server 12 SP2 with Xen, SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 12 SP3 with Xen, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 with Xen, VMware vSphere 6.0 (ESXi) Update 3, VMware vSphere 6.5 (ESXi), VMware vSphere 6.5 (ESXi) Update 1, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.7 (ESXi), VMware vSphere 6.7 (ESXi) Update 1
Miscellaneous
Compliant Standards
AS/NZS CISPR 22, CNS 13438, EN55022, EN55024, FCC CFR47 Part 15 B Class B, FCC CFR47 Part 15 C Class A, ICES-003 Class B, IEC/EN/UL 60950, RoHS, VCCI V-3, WEEE
Features
CacheVault flash cache protection, Disk Data Format (DDF) support, FastPath, Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), S.M.A.R.T. support, SafeStore, Self-Encrypting Drive (SED) support
Service & Support
Type
1-year warranty
Service & Support Details
Service & Support
Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature
50 degree Fahrenheit
Max Operating Temperature
131 degree Fahrenheit
Humidity Range Operating
20 – 90% (non-condensing)
Compatibility
Compatible With
Lenovo ThinkSystem SR530 7X07, 7X08 ¦ Lenovo ThinkSystem SR550 7X03, 7X04 ¦ Lenovo ThinkSystem SR570 7Y02, 7Y03, 7Y04 ¦ Lenovo ThinkSystem SR590 7X98, 7X99 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem SR850 7X18, 7X19 ¦ Lenovo ThinkSystem SR860 7X69, 7X70 ¦ Lenovo ThinkSystem SR950 7X11, 7X12, 7X13 ¦ Lenovo ThinkSystem ST250 7Y45 ¦ Lenovo ThinkSystem ST550 7X09, 7X10
