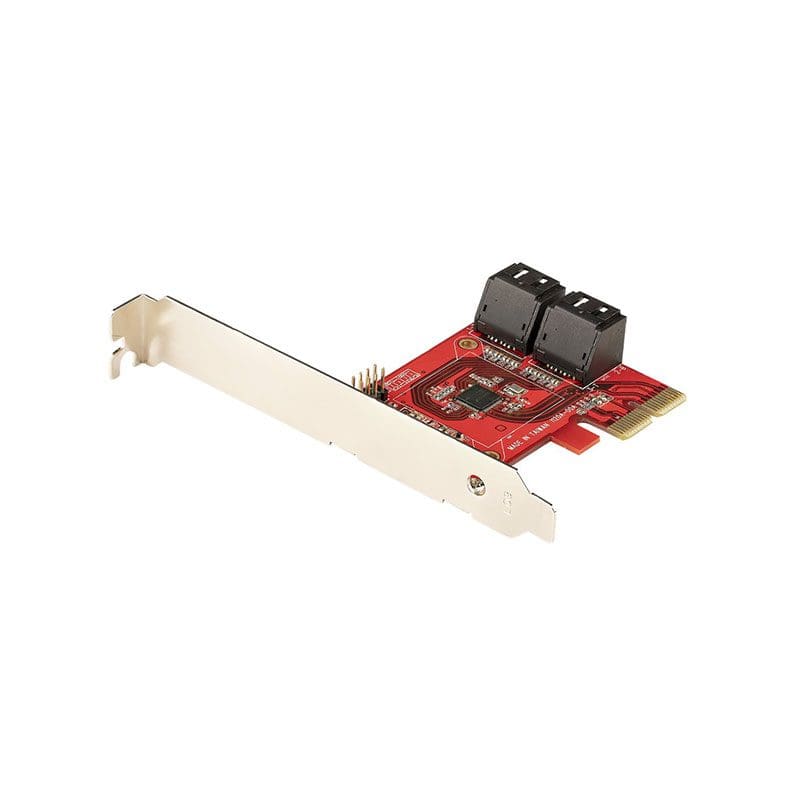

4P6G-PCIE-SATA-CARD Technical Specifications
StarTech SATA PCIe Card, 4 Port PCIe SATA Expansion Card, 6Gbps SATA Card with Low Profile Bracket, SATA Stacked Connectors, ASM1164 Non-Raid SATA Controller Card PCI Express to SATA Converter Storage Controller SATA 6Gb/s PCIe 3.0 x2
Brand : StarTech
Manufacturer Part Number : 4P6G-PCIE-SATA-CARD
Device Type Storage controller – plug-in card – low profile
Host Bus PCIe 3.0 x2
Colour Red
Storage Controller
Interface SATA 6Gb/s
Data Transfer Rate 6 Gbit/s
Supported Devices Hard drive, solid state drive
Max Storage Devices Qty 4
Processor ASMedia ASM1164
Expansion / Connectivity
Interfaces 4 x SATA 6Gb/s – SATA (internal)
Miscellaneous
Included Accessories Low-profile bracket
Features S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, ATAPI support
Compliant Standards RoHS, WEEE, RCM
Software / System Requirements
OS Required Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.6.32 or later, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple MacOS X 10.10 – 11
