Refurbished 492336-B21 Technical Specifications

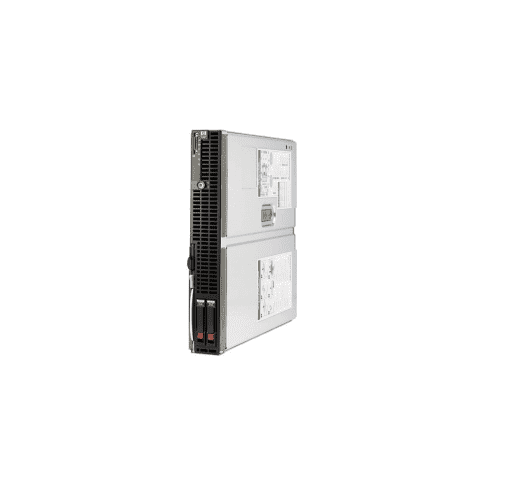

HP Proliant BL680C G5 2x Intel Qc Xeon E7430 2.13 GHZ 8GB Ram SAS SATA With P400I Smart Array 4 X Gigabit Ethernet Blade Server.
GENERAL INFORMATION :
Manufacturer : Hewlett Packard.
Manufacturer Part Number : 492336-B21
Product Name : Proliant Bl680c G5 Blade Server.
PROCESSOR & CHIPSET:
Processor Type : Intel Quad-Core Xeon E7430 / 2.13 Ghz (90w)
Multi-Core Technology : Quad-Core
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Chipset Type : Intel 7300
Data Bus Speed :1066 Mhz.
CACHE MEMORY:
Cache Type : L3 Cache
Installed Size : 24 Mb
Cache Per Processor : 12 Mb
RAM:
Installed Size: 8 Gb
Max Supported Size : 64 Gb
Technology : Ddr2 Sdram
Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Fb-Dimm 240-Pin
Features : Fully Buffered.
Configuration Features : 2 X 4 Gb
16 DDR2 Slots
STORAGE & STORAGE CONTROLLER:
Storage Hard Drive: None.
Optical Drive : None.
Storage Controller Type : 1 X Raid – Integrated
Controller Interface Type : Serial Ata-150 / Sas
Storage Controller Name : Smart Array P400i
Raid Level : Raid 0, Raid 5, Raid 10
Buffer Size : 256 Mb
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated.
Video Memory : 32 Mb
NETWORKING:
Networking : Network Adapter – Pci Express X4 – Integrated.
Ethernet Ports : 4 X Gigabit Ethernet.
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet.
Features : Wake On Lan (Wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSION / CONNECTIVITY:
Expansion Bays Total (Free):
2 ( 2 ) X Hot-Swap – 2.5in Sff.
EXPANSION SLOTS TOTAL (FREE):
2 ( 0 ) X Processor
16 ( 14 ) X Memory – Fb-Dimm 240-Pin
3 ( 3 ) X Expansion Slot
INTERFACES:
1 X Management – Hp Ilo – Rj-45
4 X Network – Rj-45
1 X Display / Video – 15 Pin Hd D-Sub (Hd-15
