Refurbished 491315-001 Technical Specifications

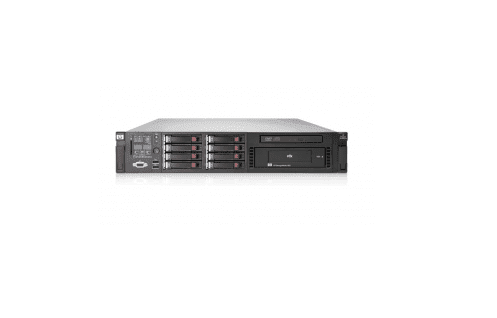

HP ProLiant DL380 G6 2 x Xeon 2.8GHz 12GB DDR3 SDRAM Serial Attached SCSI RAID Controller Rackmount Server.
General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 491315-001
Product Name: Proliant Dl380 G6 – 2u Rack Mount Server (Performance Model)
Processor & Chipset :
CPUi : Ntel Xeon X5560 / 2.8 Ghz
Max Turbo Speed : 3.2 Ghz
Number Of Cores : Quad-Core
64-Bit Computing : Yes
Cpu Qty : 2
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Chipset Type : Intel 5520
Front Side Bus : 1333 Mhz
Cache Memory :
Installed Size : L3 Cache – 16 Mb
Cache Per Processor : 8 Mb ( 2 X 4mb (4mb Per Core Pair) )
Memory :
Installed Size : 12 Gb / 144 Gb (Max)
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 6 X 2 Gb
18 DDR3 Slots
Storage:
Hard Drive : None
Optical Drive : Dvd-Writer – Sata
Storage Controllers :
Type : 1 X Raid – Plug-In Card – Pcie
Controller Interface Type : Sata 1.5gb/S / Sas
Storage Controller Name : Smart Array P410i With 512mb Bbwc
Channel Qty : 8
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 512 Mb
Display & Graphics :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb
Video Interfaces : Vga
Network & Communication :
Type : Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
Expansion & Connectivity :
Expansion Bays Total (Free):
1 (Total) / 0 (Free) X External 5.25 Slim Line
8 (Total) / 8 (Free) X Hot-Swap 2.5 Sff (8 Bays)
Expansion Slots Total (Free):
2 (Total) / 2 (Free) X Pcie X8 – Half-Length, Full-Height ( X4 Mode )
1 (Total) / 1 (Free) X Pcie X16 – Full-Length, Full-Height ( X8 Mode )
18 (Total) / 12 (Free) X Dimm 240-Pin
2 (Total) / 0 (Free) X Cpu
