489192-001 Technical Specifications

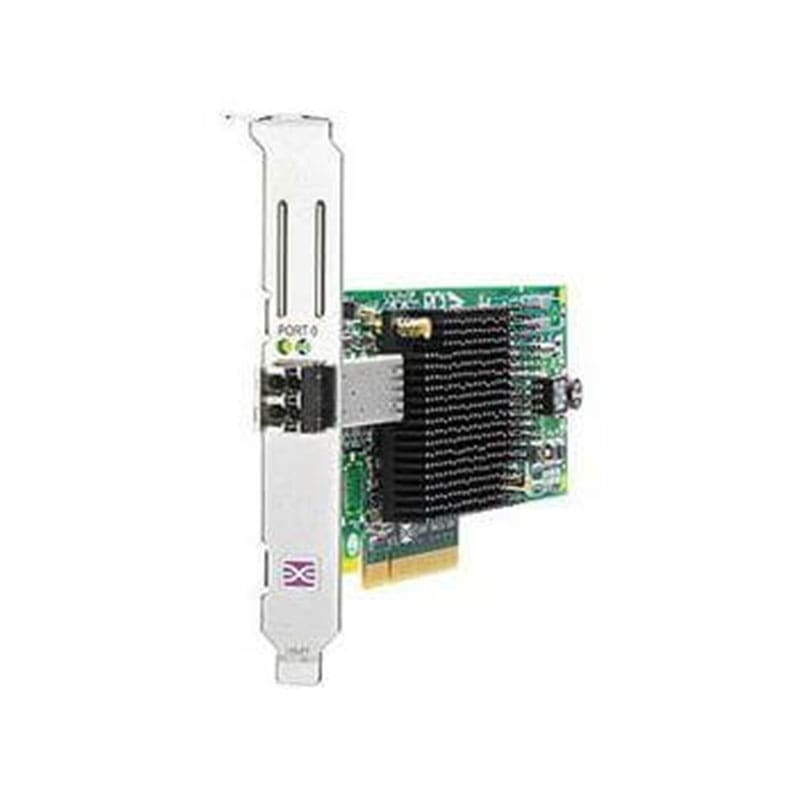

HP Storageworks 81E 8GBPS Single Port PCI-E Fibre
Manufacturer: HP
Part Number or SKU#: 489192-001
Type: Host bus adapter
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express 2.0 x4 / PCI Express x8
Networking
Ports: 8GB Fibre Channel
Connectivity Technology: Wired
Cabling Type: Fiber optic
Data Link Protocol: 8GB Fibre Channel (SW)
Data Transfer Rate: 8 GBPS
Features: Auto-negotiation
Software & System
Dimensions
Depth: 6.6 inch
Height: 2.7 inch
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 5 – 95% (non-condensing)
