487204-B21 Technical Specifications

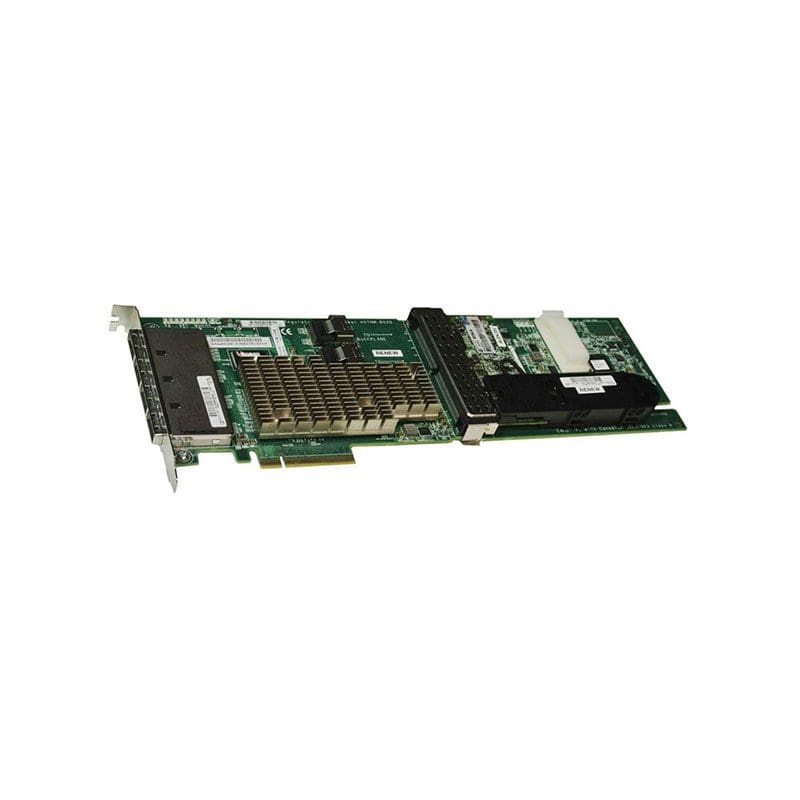

HP Smart Array P812 1GB Cache SAS 6Gbps / SATA 3Gbps PCI Express 2.0 x8 0/1/5/6/50/60 RAID Controller Card
Manufacturer Part Number 487204-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express x8
RAID Supported Yes
RAID Levels 0
1
1+0
5
6
50
60
Interfaces/Ports
Total Number of SAS Ports 6
Number of SAS Ports (Internal) 6
SAS Connector Details 2 SFF-8087
4 SFF-8088
Physical Characteristics
Height 4.4″
Width 12.2″
Thickness 0.5″
Form Factor Plug-in Card
Miscellaneous
Environmentally Friendly Yes
Environmental Certification WEEE
RoHS
