Refurbished 483443-B21 Technical Specifications

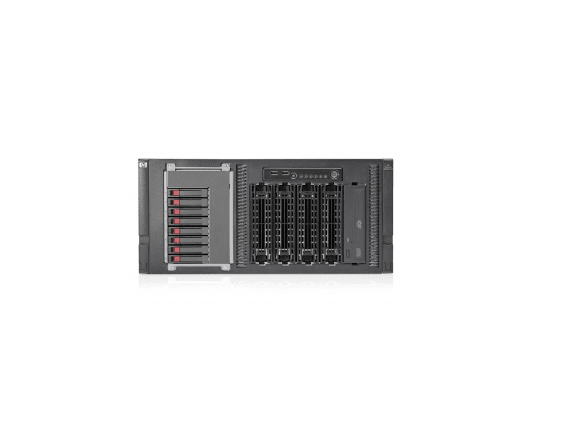

HP Proliant Ml350 G6 CTO Chassis With No CPU No RAM 2x Gigabit Ethernet 5u Rack Server.
General Information :
Manufacturer : hewlett-packard
Manufacturer part number : 483443-B21
Product name : proliant ml350 g6 5u rack Mount cto server
Processor & chipset :
Processor type : no cpu
Installed qty : 0
Max supported qty : 2
Processor technology :
Em64t
Turbo boost technology
Virtualization technology
Hyper-threading technology
Enhanced speedstep technology
Chipset type : intel 5520
Cache memory :
Cache memory type : l3 cache
Ram :
Installed ram size : 0 gb
Max supported size : 192 gb
Memory type : ddr3 rdimm or udimm
Memory slots : 18 dimm slots (18 DDR3 Slots)
Memory protection :
Unbuffered ecc
Advanced ecc
Mirrored memory
Storage & storage controller :
Hard drive : none
Maximum internal storage support : 4.80 tb hot swap sas.
Storage controller type(1st) : 1 x raid – plug-in card – pci express x4
Controller interface type : serial ata-150 / sas
Storage controller name : smart array p410i
Raid level : raid 0, raid 1, raid 5, raid 6, raid 10, raid 50
Buffer size : 512 mb
Storage controller type(2nd) : 1 x serial ata – integrated.
Display & graphics controller :
Graphics controller type : integrated
Graphics processor : ati rn50
Video memory : 64 mb
Networking :
Networking : network adapter – pci express x4 – integrated
Ethernet ports : 2 x gigabit ethernet
Ethernet controller : hp nc326i
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Features : wake on lan (wol)
Compliant standards : ieee 802.3, ieee 802.3u, ieee 802.3ab
Expansions & connectivity :
Expansion bays :
8 ( 8 ) x hot-swap – 2.5in sff (8 Bays)
Expansion slots :
4 ( 4 ) x pci express x8 ( x4 mode )
18 ( 18 ) x memory – dimm 240-pin
2 ( 2 ) x processor.
1 ( 1 ) x pci express x16 ( x8 mode )
1 ( 1 ) x pci express x8
Interfaces:
1 x display / video – vga – 15 pin hd d-sub (hd-15)
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x serial – rs-232 – 9 pin d-sub (db-9)
1 x network – ethernet 10base-t/100base-tx/1000base-tx – rj-45
1 x management – hp ilo – rj-45
6 x hi-speed usb – 4 pin usb type a
