Refurbished 470064-513 Technical Specifications

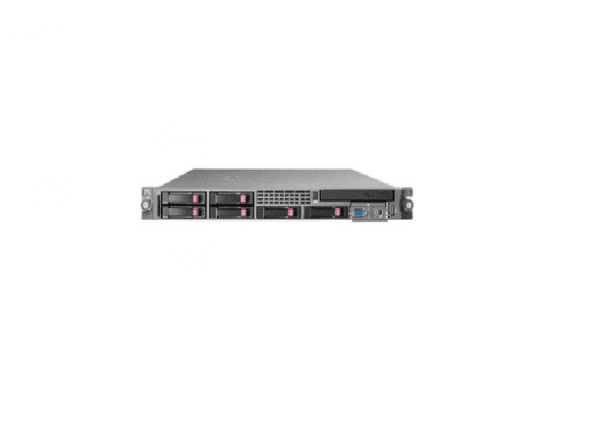

HP Proliant DL360 G5 Smart Buy 1X Intel Xeon 4-Core E5345/ 2.33GHz, 2GB RAM, 2X NC373I Gigabit Adapters, Smart Array P400I With 256MB BBWC, 2X 700W PS 1U Rack Server.
GENERAL INFORMATION :
Manufacturer : Hewlett-Packard
Manufacturer Part Number : 470064-513
Product Name : Proliant Dl360 G5 – 1u Rack Mount Server (Smart Buy)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5345 / 2.33GHz
Multi-Core Technology : Quad-Core
Processor Sockets Supported : Lga771
Installed Processor Qty : 1
Total Processor Support : 2
Bus Speed: 1066MHz
Chipset: Intel 5000p
CACHE MEMORY:
Type : L2 Cache
Installed Size : L2 Cache – 8 MB
Cache Per Processor : 8 Mb ( 2 X 4mb (4mb Per Core Pair) )
MEMORY :
Installed Size: 2 Gb / 64 GB (Max)
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 533 MHz
Memory Specification Compliance: Pc2-5300
Form Factor: Fb-Dimm 240-Pin
Features: Fully Buffered
Configuration Features : 2 X 1 GB
Upgrade Rule: 2 Modules At A Time
STORAGE :
Hard Drive: None
Optical Storage Type: None
STORAGE CONTROLLER :
Type : 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type : SATA 1.5GB/S / SAS
Storage Controller Name : Smart Array P400i
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 256 Mb
DISPLAY & GRAPHICS :
Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb Sdram
NETWORK & COMMUNICATION :
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type: Power Supply – Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 700 Watt
