46W9128 Technical Specifications

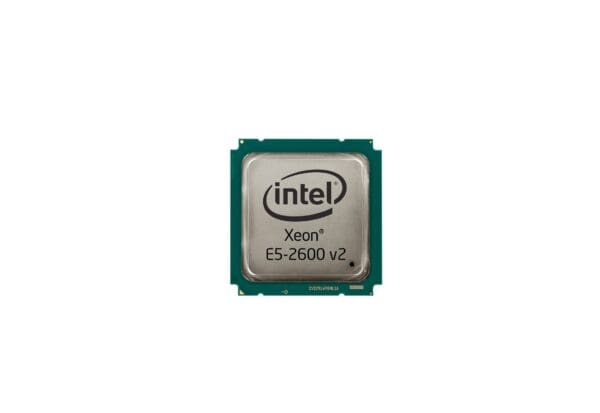

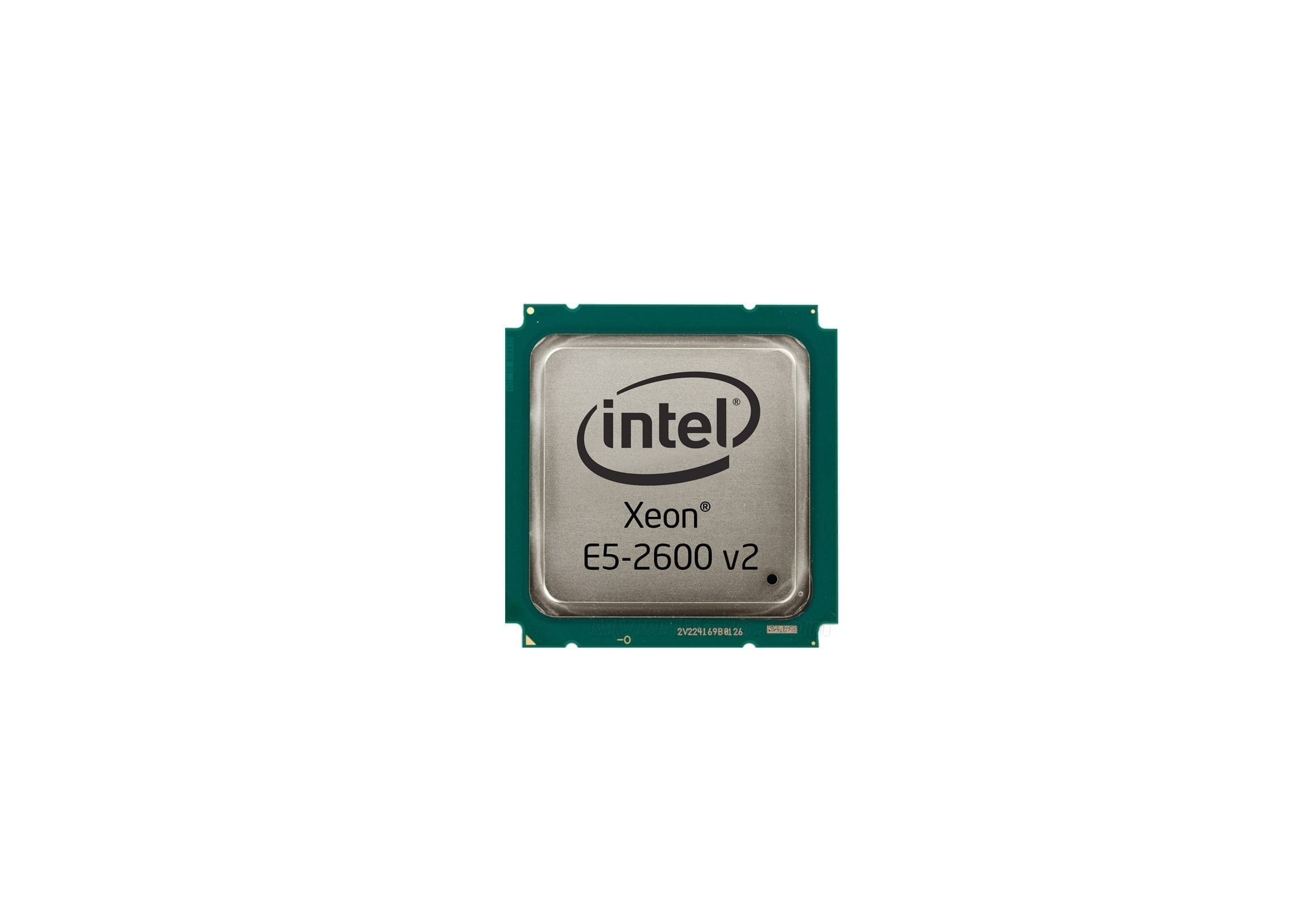

IBM 1.80GHz 6.40GT/s QPI 10MB L3 Cache Intel Xeon E5-2603 v2 Quad Core Processor Upgrade
Brand Intel
Part No. 46W9128
Processor Type Server
Processor Family E5-2600 v2
Series Xeon Processor
Core Model Type/ProcNo. E5-2603 v2
Processor Code Name Ivy Bridge EP
Core Stepping S1
Manufacturing Technology 22 nm
CPU ID String 306E4
# of Cores 4
# of Threads 4
Clock Speed 1.80 GHz
L3 Cache Size 10 MB
Front Side Bus / QuickPath Interconnect 6.40 GT/s QPI
Thermal Power 80 Watts
VID Voltage Range 0.65–1.30V
CPU Socket Type LGA 2011
Product Condition OEM
