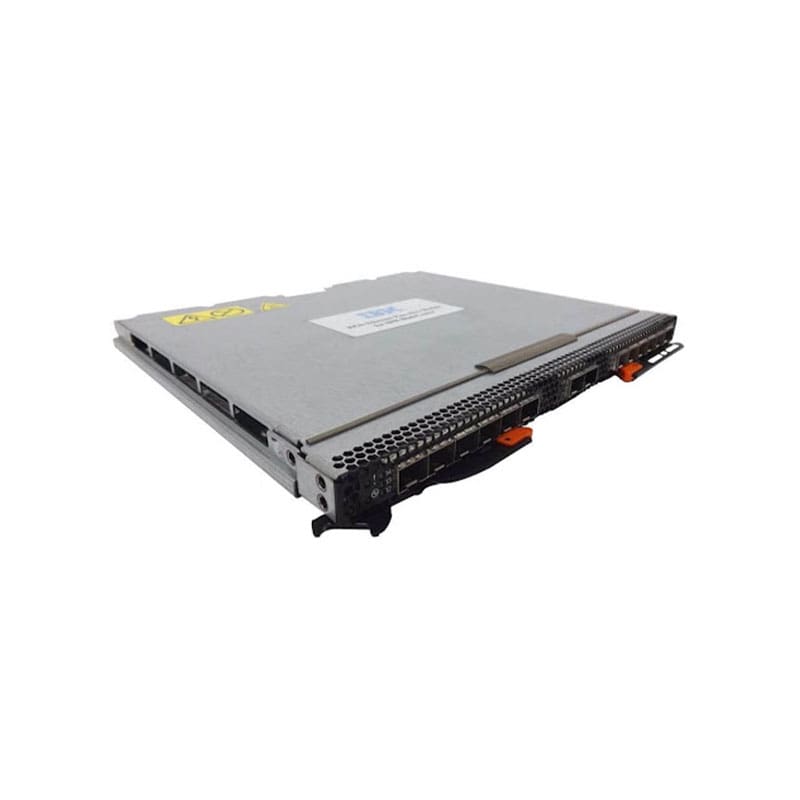

46M6184 Technical Specifications
IBM 10GB Ethernet Pass-Thru Module For BladeCenter
Manufacturer: IBM
Brand: IBM
Manufacturer Type: Networking
Product Type: Expansion Module
Product Name: 10 Gigabit (GB)
Ethernet Ports: 4 x 10GB Ethernet ports
Connectivity: 10GB Ethernet
Pass-Thru Design: Yes
Compatibility: IBM BladeCenter H, HT, and S chassis
Single-Wide High-Speed Switch Module
14 Internal 10GB Ports To The Server Blades (No Auto-Negotiation)
Up To Fourteen 10GB SFP+ Uplink Ports (SFP+ Modules Are Not Included)
Support For Sr, Lr, And Dac Copper Cables
Direct One-To-One Mappings Of External And Internal Ports (No Configuration Required)
Simple Setup And Monitoring Through Advanced Management Module
Management-Module Inter-Integrated Circuit (I2c) Interface That Provides Vital Product Data (Vpd) And Register Access
Provides Self-Test And Diagnostics Capability
No Serial Over Lan (Sol) Support
