453608-B21 Technical Specifications

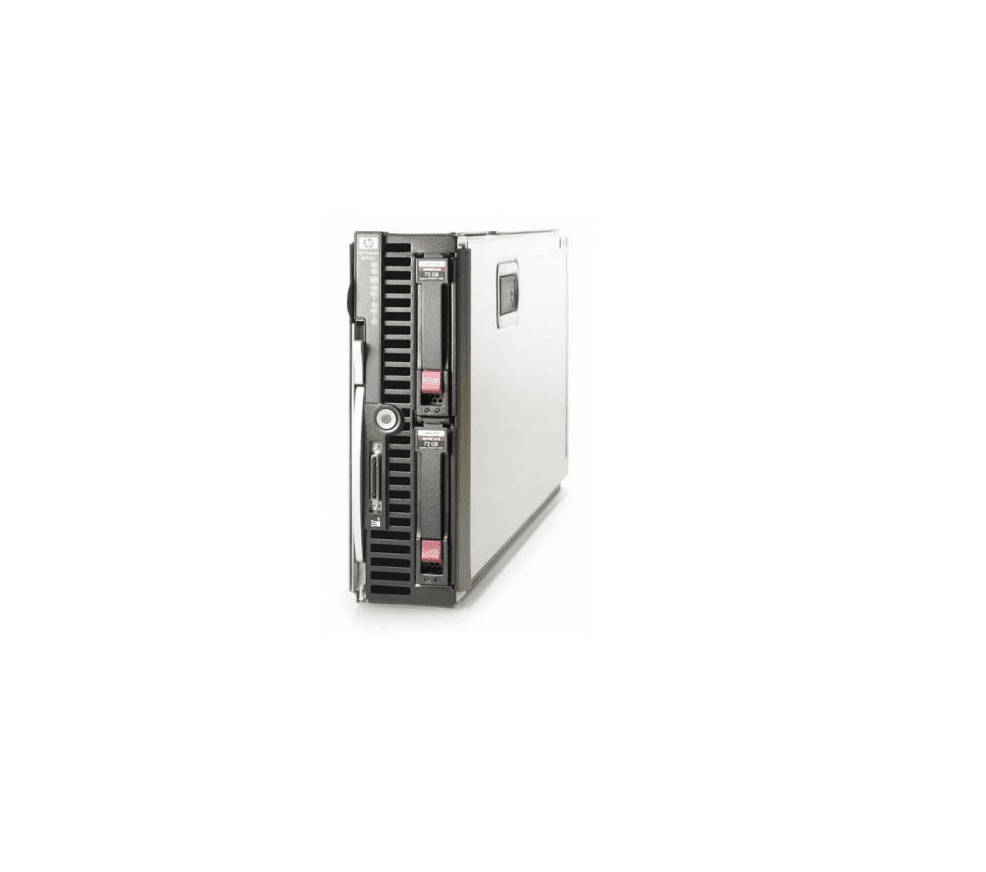

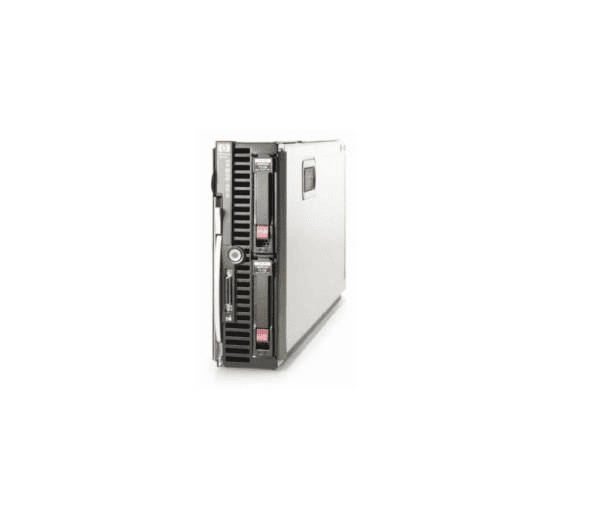

HP Proliant BL460C G1 1P Intel Xeon L5335 Qc 2.0GHz 2GB RAM SAS SATA Hot Swap 2 X Gigabit Ethernet ILO Blade Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 453608-B21
Product Name: Proliant Bl460c G1 Blade Server
MAIN SPECIFICATIONS:
Processor & Chipset:
Processor Type: Intel Xeon L5335 / 2 Ghz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel 5000p
Data Bus Speed: 1333 Mhz
CACHE MEMORY:
Type: L2 Cache
Installed Size: 8 Mb
Cache Per Processor: 8 Mb ( 2 X 4mb (4mb Per Core Pair) )
MEMORY:
Installed Ram Size: 2 Gb / 32 Gb (Max)
Technology: Ddr2 Sdram
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Fb-Dimm 240-Pin
Features: Fully Buffered
Configuration Features: 2 X 1 Gb
Upgrade Rule: 2 Modules At A Time
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Integrated – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas (2 Bays)
Storage Controller Name: Smart Array E200i
Raid Level: Raid 0, Raid 1
Buffer Size: 64 Mb
HARD DRIVE: NONE.
Monitor: None.
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Video Memory: 32 Mb Ddr Sdram
NETWORKING:
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
