Refurbished 449767-001 Technical Specifications

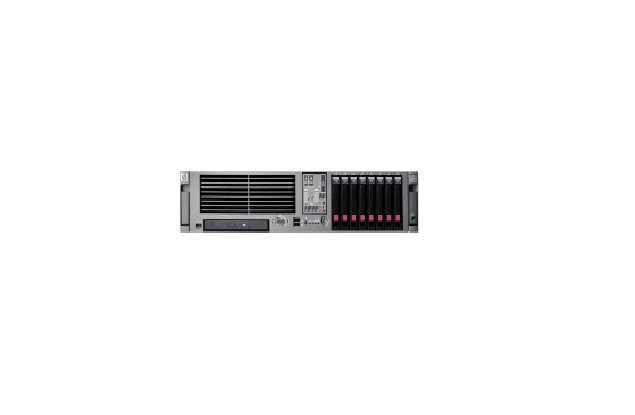

HP Proliant Dl385 G5 1p AMD Opteron 2356 Qc 2.3GHz 2GB RAM SAS HS Combo 2 X Gigabit Ethernet 2u Rack Server.
General Information:
Manufacturer: hewlett-packard
Manufacturer part number: 449767-001
Product name: proliant Dl385 server
Processor & chipset:
Processor: 1 x amd opteron 2356 quad-core 2.3GHz
Total processor support: 2
Processor technology: amd virtualization, amd64 technology, hypertransport technology
Cache: 2 x 1mb l2
Chipset: serverworks ht2100
Memory:
Standard memory: 2gb
Maximum memory: 32gb
Memory technology: ddr sdram
Memory speed: 667 mhz
Memory specification compliance: pc2-5300
Form factor: dimm 240-pin
Signal processing: registered
Configuration features: 2 x 1 gb
Storage:
Hard drive: not included
Maximum internal storage support: 1.8tb hot-swappable scsi
Optical drive: cd-rw / dvd-rom combo – ide
Removable storage drives: not included
Storage controller:
Storage controller type: 1 x raid – plug-in card – pci express x8
Controller interface type: serial ata-150 / sas
Storage controller name: smart array p400
Raid level: raid 0, raid 1, raid 5, raid 10
Buffer size: 256 mb
Storage controller (2nd):
Storage controller type: 1 x ide – integrated
Display & graphics:
Graphics controller type: integrated
Graphics processor: ati es1000
Video memory: 32 mb
Network & communication:
Networking: network adapter – pci express x4 – integrated
Ethernet ports: 2 x gigabit ethernet
Ethernet controller(s): 2 x hp nc373i
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Remote management controller: integrated lights-out 2 standard
Features: wake on lan (wol), dhcp support, acpi support
Compliant standards: ieee 802.3, ieee 802.3u, ieee 802.3ab
I/o expansions:
Expansion bays total (free):
8 ( 8 ) x hot-swap – 2.5 sff (8 Bays)
1 ( 1 ) x front accessible
Expansion slots total (free):
2 ( 2 ) x pci express x16 ( x8 mode )
2 ( 1 ) x pci express x8
1 ( 1 ) x pci express x8 ( x4 mode )
2 ( 1 ) x processor
8 ( 6 ) x memory – dimm 240-pin
Interfaces:
1 x serial – rs-232 – 9 pin d-sub (db-9)
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
2 x display / video – vga – 15 pin hd d-sub (hd-15) ( 1 in front )
2 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
1 x management – hp ilo – rj-45
5 x hi-speed usb ( 2 front, 2 rear, 1 internal )
Power description:
Device type: power supply – hot-plug
Power redundancy: optional
Power redundancy scheme: 1+1 (with optional power supply)
Installed qty: 1
Max supported qty: 2
Voltage required: ac 120/230 v ( 50/60 hz )
Power provided: 800 watt
