Refurbished 445198-001 Technical Specifications

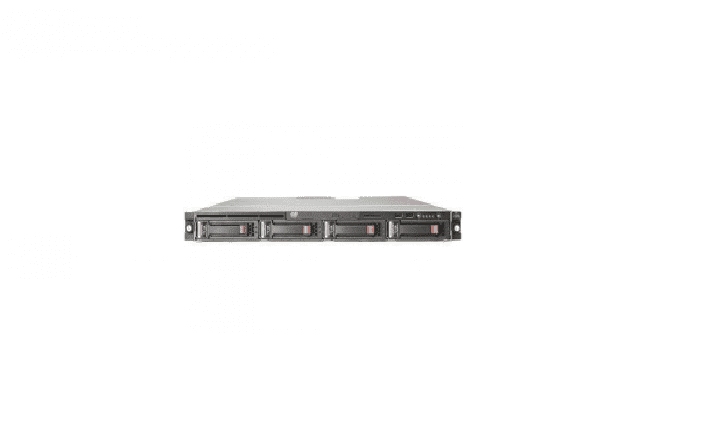

HP Proliant Dl160 G5 1p Intel Xeon Qc X5472 3.0GHz 2GB RAM 160GB HDD 2 X Gigabit Ethernet ILO HP Embedded SATA RAID 1u Rack Server.
General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 445198-001
Product Name: Proliant Dl160 G5 Server
Processor & Chipset:
Processor Type: Intel Xeon X5472 / 3 GHz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Cache Memory: 12mb – 2 X 6mb (6mb Per Core Pair) L2 Cache
Chipset Type: Intel 5400
Fsb: 1600 Mhz
Cache Memory:
Type: L2 Cache
Installed Size: 12 Mb
Cache Per Processor: 12 Mb ( 2 X 6mb (6mb Per Core Pair) )
Memory:
Installed Ram Size: 2 Gb
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 533 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Dimm 240-Pin
Configuration Features: 2 X 512mb
Feature: Fully Buffered
Storage:
Hard Drive: 160 Gb Serial Ata 7200 Rpm Non Hot-Swappable
Hard Drive Interface: Hot Plug / Non-Hot Plug Serial Ata (Sata)
Hard Drive Bays: Up To 4 Hot Plug / Non-Hot Plug Sata 3.5 Drives
Maximum Internal Storage : Up To 4.0tb 4 X 1tb Hot Plug 3.5 Sata), 3.0tb (4 X 750 Non-Hot Plug Sata) Or 4.0tb (4 X 1tb Hot Plug 3.5 Sas)
Optical Storage: None
Floppy Drive: None
Storage Controller:
Storage Controller Type: 1 X Raid – Integrated
Controller Interface Type: Serial Ata-150
Raid Level: Raid 0, Raid 1
Storage Controller (2nd) :
Storage Controller Type: 1 X Ide – Integrated
Controller Interface Type: Ide/Ata
Display & Graphics:
Integrated 32mb Shared Supporting 1600x1200x16m Resolution
Network & Communication:
Nic Type: Two Embedded Nc105i Pcie Gigabit Server Adapters
Features (Aa): Acpi Support, Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3ab, Ieee 802.3u
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: 1 X Hp Proliant Lights Out 100i Remote Management – Rj-45
Power Description:
Power Device: 1 X 650watt, Auto-Switching, Power Factor Correcting Power Supply
Nominal Input Voltage(Vrms):Ac 120/240 V
Frequency Range (Nominal) (Hz): 47 Hz To 63 Hz
