Refurbished 445147-B21 Technical Specifications

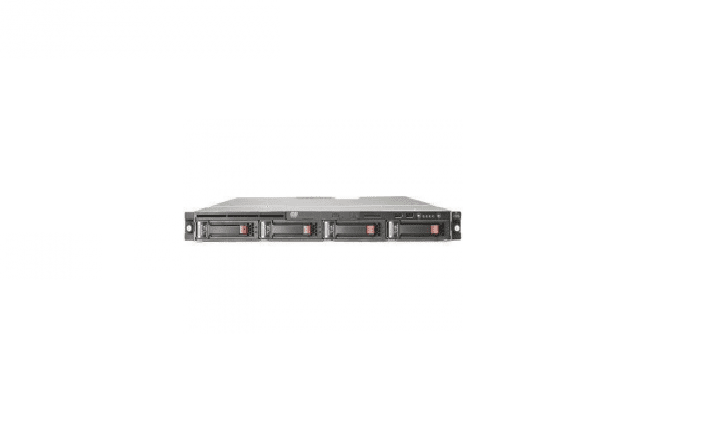

HP ProLiant DL165 G5 Non-Hot Plug SATA Rack Chassis.
GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 445147-B21
Product Name: Proliant Dl165 G5 – 1u Rack Mount Server
PROCESSOR & CHIPSET:
Processor Type: No Cpu
Max Supported Qty: 2
Upgradability: Upgradable
MEMORY:
Installed Ram Size: 0 Mb
Technology: Ddr2 Sdram
Form Factor: Dimm 240-Pin
STORAGE:
Hard Drive: None.
STORAGE CONTROLLERS :
Storage Controller Type: 1 X Raid – Integrated
Controller Interface Type: Serial Ata-150 / Sas
Raid Level: Raid 0, Raid 1
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
NETWORK & COMMUNICATION:
Networking: Network Adapter – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc7782
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free):
1 (Total) / 1 (Free) X Front Accessible – 5.25 Slim Line
4 (Total) / 4 (Free) X Hot-Swap – 3.5 X 1/3h
Expansion Slots Total (Free):
1 (Total) / 1 (Free) X Pci Express X8 – Low-Profile ( X8 Mode )
1 (Total) / 1 (Free) X Pci Express X16 – Full-Length, Full-Height
8 (Total) / 8 (Free) X Memory – Dimm 240-Pin (8 DDR2 Slots)
2 (Total) / 2 (Free) X Processor
1 (Total) / 1 (Free) X Pci-X – Low-Profile
Interfaces & Ports:
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15)
5 X Usb – 4 Pin Usb Type A ( 2 Front, 2 Rear, 1 Internal )
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
POWER DESCRIPTION:
Device Type: Power Supply
Installed Qty: 1
Max Supported Qty: 1
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 650 Watt
