Refurbished 435552-B21 Technical Specifications

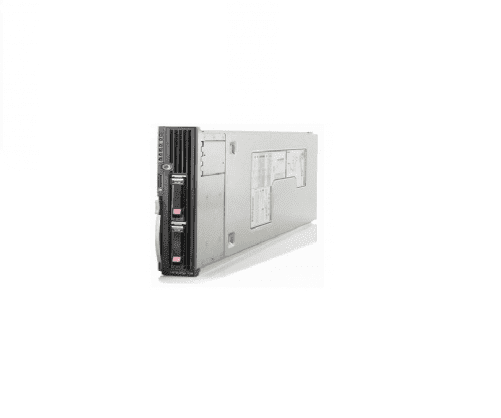

HP Proliant BL20P G41X Intel Xeon E5345 QC 2.33GHz 2GB RAM SAS/SATA HS 2 X Gigabit Ethernet ILO 8MB ATI Rage XL Blade Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 435552-B21
Product Name: Proliant Bl20p G4 – Blade Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5345 / 2.33 GHz
Multi-Core Technology: Quad-Core (4 Core)
64-Bit Computing: Yes
Installed Processor Qty: 1
Total Processors Support: 2
Cache Memory: 8 Mb L2
Chipset Type: Intel 5000p
FSB: 1333 MHz
MEMORY:
Standard Memory: 2GB
Maximum Memory: 32GB
Technology: DDR2 SDRAM – ADVANCED ECC
Memory Speed: 533 MHz
Memory Specification Compliance: PC2-5300
Form Factor: DIMM 240-PIN
Features: Memory Mirroring, Fully Buffered, Online Spare Memory
STORAGE:
Hard Drive: Not Included
STORAGE CONTROLLER:
Buffer Size: 64 MB
Controller Interface Type: Serial Attached Scsi (SAS)
Form Factor: Plug-In Card
Installed Qty: 1
Interface Type: Pci-X / 133 MHz
Raid Level: RAID 0, RAID 1, RAID 10
Storage Controller Name: Smart Array E200i
Type: Raid
DISPLAY & GRAPHICS:
Form Factor: Integrated
Graphics Processor Vendor: Ati Rage Xl
Installed Size: 8 MB
Technology: SDRAM
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci-X – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc374i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2, Integrated Lights-Out ADVANCED Management (Asic)
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
EXPANSION & CONNECTIVITY:
Expansion bays total (free):
2 ( 2 ) X Hot-Swap – 2.5 (2 Bays)
EXPANSION SLOTS TOTAL (FREE):
2 ( 1 ) X Processor
8 ( 6 ) X MEMORY – FB-DIMM 240-PIN
INTERFACES:
2 X USB – 4 PIN USB TYPE A
1 X DISPLAY / VIDEO – VGA – 15 PIN HD D-SUB (HD-15)
1 X MANAGEMENT – HP ILO – RJ-45
2 X NETWORK – ETHERNET 10BASE-T/100BASE-TX/1000BASE-T – RJ-45
1 X SERIAL – RS-232 – 9 PIN D-SUB (DB-9)
